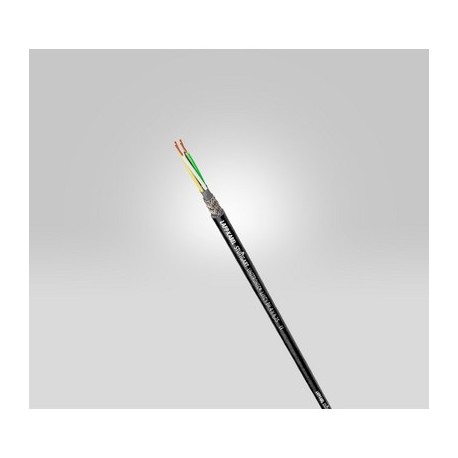

LAPP 1030518 1030518 LAPP UNITRONIC LiYCY 3x0,5 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1030518 LAPP UNITRONIC LiYCY 3x0,5 BK

1030518

1030518

LAPP

1 m.

UNITRONIC LiYCY 3x0,5 BK UNITRONIC

Cables > Data and communication cable
flexible data cable transfer from special cable

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lapp 1030518 LAPP UNITRONIC LiYCY 3x0,5 BK is a screened multi-core control and signal cable featuring a black PVC outer jacket for versatile industrial applications. Shielded cables of this type are standard across machine building and electronic instrumentation for secure, interference-free signal transmission. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • The classic for multiple applications: in black: undefined
  • CPR: Registration number and classification in www.lappkabel.com/cpr: undefined
  • PVC outer shell Outer shell color: black: undefined
  • C/C: approx. 120 nF/km Driver/Display: undefined
  • approx. 160 nF/km: Braiding, fine thread 0.34 mm²: 7 threads: undefined
  • Occasional flexible use: 15 x outside diameter: undefined
  • Fixed installation: 6 x outer diameter: undefined
  • Occasional flexible use: –5°C to +70°C: undefined
  • Fixed installation: -40°C to +80°C: undefined
  • ETIM 5.0 Class-ID: EC000104: undefined
  • ETIM 5.0 Class Description: Control Cable: undefined
  • ETIM 6.0 Class-ID: EC000104: undefined
  • ETIM 6.0 Class-Description: Control Line: undefined

More info

▲

UNITRONIC data cable® PVC, shielded, DIN 47100, in machine and plant construction, instrumentation, control and regulation, black cover/UV resistant/outdoor application

  • The classic for multiple applications: in black
  • UV resistant / weather use
  • CPR: Registration number and classification in www.lappkabel.com/cpr

proceeds

  • General shielding minimizes electrical interference
  • Multifunctional cable
  • Outdoor use according to European standards

Scope of use

  • Shielded cables of small sections are used in computer systems, electronic instrumentation, office equipment, scales, etc.
  • Dry and wet interiors.
  • Outdoor use according to European standards

Product features

  • Non-flame propagator, according to IEC 60332-1-2
  • Resistant to UV radiation according to EN 50525-1
  • Ozone resistant

Reference Standards / Approvals

  • Based on VDE 0812

Product composition

  • Braiding of fine/multi-thread filaments (0.34 mm²) of bare copper threads
  • Conductor insulation made of PVC
  • Tinned copper braid screen
  • PVC outer shell
    Outer shell color: black

ETS Classification 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class Description: Control Cable

ETTIM Rating 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control Line

Driver Identification Code

  • DIN 47100, no repetition of colors (Table T9 of the appendix)

Mutual capacity

  • C/C: approx. 120 nF/km
    Driver/Display: approx. 160 nF/km

Inductance

  • Approx. 0.65 mH/km

Driver training

  • Braiding, fine thread
    0.34 mm²: 7 threads

Minimum radius of curvature

  • Occasional flexible use: 15 x outside diameter
  • Fixed installation: 6 x outer diameter

Temperature range

  • Occasional flexible use: –5°C to +70°C
  • Fixed installation: -40°C to +80°C
