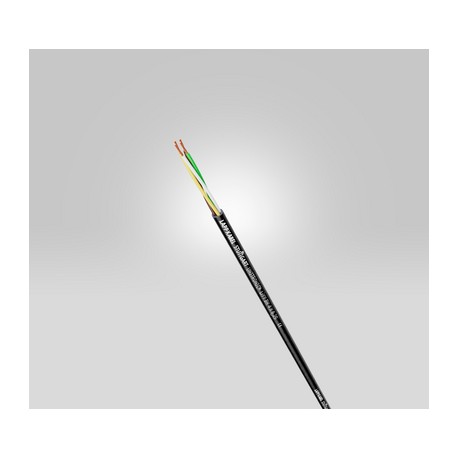

1030244 LAPP UNITRONIC LiYY 10x0,34 BK
1030244
1030244
LAPP
1 m.
Connectors > Printed circuit board terminal
flexible data cable transfer from special cable
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing versatile connection options in a durable black jacket, the Lapp 1030244 UNITRONIC LiYY 10x0,34 BK data cable supports instrumentation and control wiring. Low-frequency data cables are frequently utilized in electronic control units, automation panels, and measurement setups.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- The classic for multiple applications: in black
- PVC outer shell Outer shell color: black
- Braiding, fine thread 0.34 mm²: 7 threads
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class Description: Control Cable
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control Line
More info
▲UNITRONIC® PVC data cable, color code DIN 47100, for machinery, installations, control and regulation, black/UV resistant/outdoor application
- The classic for multiple applications: in black
- UV resistant / weather use
- CPR: Registration number and classification in www.lappkabel.com/cpr
proceeds
- Saving space in the installation thanks to the small diameter of the cable
- Multifunctional cable
- Outer covers can be manufactured in special colors to customize your products (subject to minimum manufacturing batches) for example a certain color for a specific device.
- Outdoor use according to European standards
Scope of use
- UNITRONIC® LiYY cable is also used as a control and signal cable in electronics, for computer systems, electronic control equipment, office machines, scales, etc.
- Dry and wet interiors.
- Occasional flexible use
- Outdoor use according to European standards
Product features
- LiYY data cables have a small size, despite the large number of conductors.
- Non-flame propagator, according to IEC 60332-1-2
- Resistant to UV radiation according to EN 50525-1
- Ozone resistant
Reference Standards / Approvals
- Based on VDE 0812
Product composition
- Braiding of fine/multi-thread filaments (0.34 mm²) of bare copper threads
- Conductor insulation made of PVC
- PVC outer shell
Outer shell color: black
ETS Classification 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class Description: Control Cable
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control Line
Driver Identification Code
- DIN 47100, no repetition of colors (Table T9 of the appendix)
Mutual capacity
- Approx. 120 nF/km
Inductance
- Approx. 0.65 mH/km
Driver training
- Braiding, fine thread
0.34 mm²: 7 threads
Minimum radius of curvature
- Occasional flexible use: 10 x outer diameter
- Fixed installation: 4 x outside diameter
Temperature range
- Occasional flexible use: –5°C to +70°C
- Fixed installation: -40°C to +80°C
