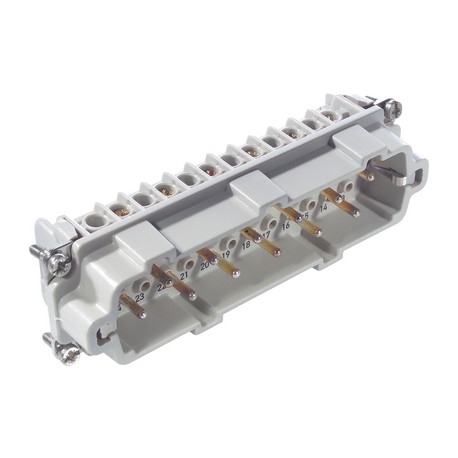

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
10270010 EPIC H-BVE 10 SS DR LAPP EPIC H-BVE 10 SS DR
10270010
10270010
EPIC H-BVE 10 SS DR
LAPP
5 Pcs.
EPIC H-BVE 10 SS DR
EPIC® H-BVE 10
Connectors > Contact insert for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The multi-pole insert enables switching operation for disconnecting loads and can be used in investment construction.
- Multipole insert with lagging switch contacts
- Switching operations possible for disconnecting under load
Benefits
- With the relevant wiring, the lagging switch contacts interrupt the power supply before the working contacts are separated
- These high-voltage inserts are additionally equipped with 2 switching contacts
Application range
- Mechanical engineering
- Plant engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- IEC: 630 V
UL: 600 V
CSA: 600 V
Rated impulse voltage
- 6 kV
Rated current (A)
- IEC: 16 A
UL: 16 A
CSA: 16 A
Pollution degree
- 3
Contact resistance
- < 2 mOhm
Contacts
- Copper alloy, hard silver-plated
Number of contacts
- 10 + 2 + PE
Termination methods
- Screw termination: 0.5 - 2.5 mm²
Stripping length (mm)
- 8
Cycle of mechanical operation
- 100
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
