Product Overview

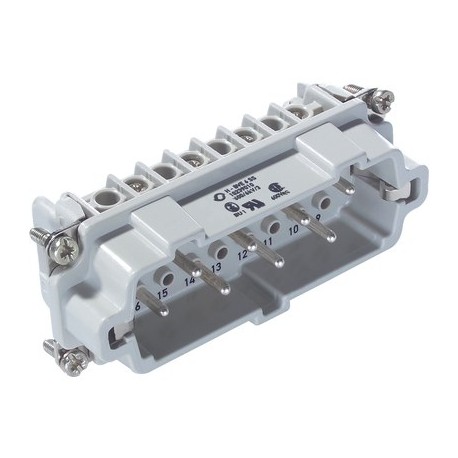

Operating as a contact insert for industrial connectors, the Lapp 10240110 EPIC H-BVE 6 BS LAPP EPIC H-BVE 6 BS handles high-voltage circuit requirements within heavy-duty industrial plug setups. These modular connection blocks allow engineers to construct custom power routing architectures that withstand demanding operational voltages.

Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • IEC: 630 V UL: 600 V CSA: 600 V
  • IEC: 16 A UL: 16 A CSA: 16 A
  • Screw termination: 0.5 - 2.5 mm²
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

The multi-pole high-voltage insert has two switching contacts and is the ideal solution for investment construction and mechanical engineering.

  • Multipole insert with lagging switch contacts
  • Switching operations possible for disconnecting under load

Benefits

  • These high-voltage inserts are additionally equipped with 2 switching contacts
  • With the relevant wiring, the lagging switch contacts interrupt the power supply before the working contacts are separated

Application range

  • Mechanical engineering
  • Plant engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 630 V
    UL: 600 V
    CSA: 600 V

Rated impulse voltage

  • 6 kV

Rated current (A)

  • IEC: 16 A
    UL: 16 A
    CSA: 16 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 6 + 2 + PE

Termination methods

  • Screw termination: 0.5 - 2.5 mm²

Stripping length (mm)

  • 8

Cycle of mechanical operation

  • 100

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
