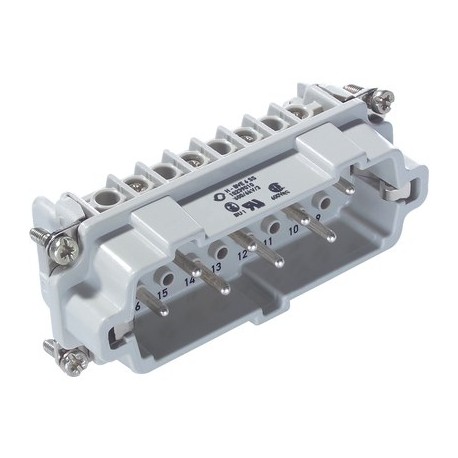

10240010 EPIC H-BVE 6 BS DR LAPP EPIC H-BVE 6 BS DR
10240010
10240010
EPIC H-BVE 6 BS DR
LAPP
5 Pcs.
Connectors > Contact insert for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for extended voltage ratings in modular frameworks, the Lapp 10240010 EPIC H-BVE 6 BS DR contact insert for industrial connectors facilitates organized power and signal routing. These connector modules allow engineers to combine different circuit types within specialized multi-slot frames inside heavy industrial housings. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- IEC: 630 V UL: 600 V CSA: 600 V
- IEC: 16 A UL: 16 A CSA: 16 A
- Screw termination: 0.5 - 2.5 mm²
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
More info
▲The multi-pole high-voltage insert has two switching contacts and is the ideal solution for investment construction and mechanical engineering.
- Multipole insert with lagging switch contacts
- Switching operations possible for disconnecting under load
Benefits
- These high-voltage inserts are additionally equipped with 2 switching contacts
- With the relevant wiring, the lagging switch contacts interrupt the power supply before the working contacts are separated
Application range
- Mechanical engineering
- Plant engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- IEC: 630 V
UL: 600 V
CSA: 600 V
Rated impulse voltage
- 6 kV
Rated current (A)
- IEC: 16 A
UL: 16 A
CSA: 16 A
Pollution degree
- 3
Contact resistance
- < 2 mOhm
Contacts
- Copper alloy, hard silver-plated
Number of contacts
- 6 + 2 + PE
Termination methods
- Screw termination: 0.5 - 2.5 mm²
Stripping length (mm)
- 8
Cycle of mechanical operation
- 100
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
