LAPP 1023378 1023378 LAPP (4G22AWG+(2x22AWG)+(4x26AWG)) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1023378 LAPP (4G22AWG+(2x22AWG)+(4x26AWG))

1023378

1023378

LAPP

1 m.

(4G22AWG+(2x22AWG)+(4x26AWG)) ÖLFLEX® SERVO FD 7OCS

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a control cable, the 1023378 LAPP (4G22AWG+(2x22AWG)+(4x26AWG)) component is designed for multi-conductor signal and power transmission in dynamic automation setups. Industrial machinery relies on these composite cables to route control commands and feedback simultaneously. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Flammability: UL/CSA: VW-1, FT1 IEC/EN: 60332-1-2
  • For use in power chains: Please comply with assembly guideline Appendix T3
  • Core insulation: polypropylene (PP)
  • Power cores and brake pairs or triplets: Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
  • Signal cores, data pairs or star quads: Fine-wired
  • Flexing: 7.5 x outer diameter
  • Fixed installation: 5 x outer diameter
  • Flexing: -40°C to +80°C
  • Fixed installation: -50°C to +80°C
  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable
  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

More info

▲

ÖLFLEX® SERVO FD 7OCS - hybrid cables for permanently moved power chain applications, UL/cUL AWM.

  • One cable solutions for servo drives
  • Suitable for various OEM transmission protocols
  • Extended Line Performance - High power chain requirements

Benefits

  • Allows much faster speed and accelerations which increases the economic efficiency of the machines
  • Only one connection line between drive and motor-feedback system. Instead of the encoder cable integrated data pairs, quads or signal cores take over the signalling.
  • Less cables and reduced connection costs
  • Space and weight savings thanks to hybrid cable design
  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media

Application range

  • Power drive systems in automation engineering
  • Connecting cable between servo controller and motor
  • In power chains or moving machine parts
  • For use in assembling & pick-and-place machinery
  • Particularly in wet areas of machine tools and transfer lines
  • For indoor and outdoor use

Product features

  • OCS - One Cable Solution
  • High oil-resistance
  • Abrasion and notch-resistant
  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Halogen-free materials
  • Flexible at low temperatures

Norm references / Approvals

  • UL AWM Style 21223 or 20233
    cRU AWM I/II A/B FT1
  • UL File No. E63634
  • For use in power chains: Please comply with assembly guideline Appendix T3

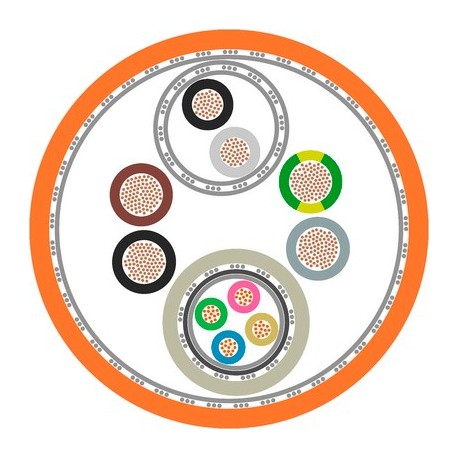

Product Make-up

  • Extra-fine or fine wired conductor made of bare or tinned copper
  • Core insulation: polypropylene (PP)
  • Individual design depending on the item: power cores with screened control pair or bundle and specific data pairs, quads or signal cores twisted together
  • Non-woven wrapping
  • Tinned-copper braiding
  • PUR outer sheath, orange (RAL 2003)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

Core identification code

  • Details see datasheet

Conductor stranding

  • Power cores and brake pairs or triplets: Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
  • Signal cores, data pairs or star quads: Fine-wired

Minimum bending radius

  • Flexing: 7.5 x outer diameter
  • Fixed installation: 5 x outer diameter

Nominal voltage

  • Power and control cores:
    Version 1,3 & 4: IEC U0/U 600/1000 V
    Version 2: IEC 300 V
    UL all versions: see data sheet
    Individual data pairs and quads:
    see data sheet

Test voltage

  • Details see datasheet

Protective conductor

  • G = with GN-YE protective conductor

Temperature range

  • Flexing: -40°C to +80°C
  • Fixed installation: -50°C to +80°C

Bending cycles & operation parameters

  • See Selection Table A2-1 in the appendix of our online catalogue
