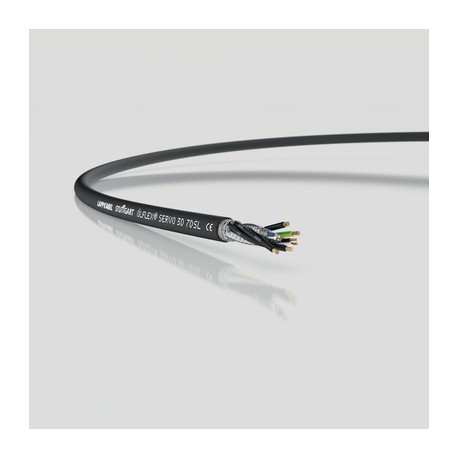

LAPP 1023353 1023353 LAPP ÖLFLEX SERVO 3D 7DSL 4G2,5+(2x1)+(2x22 A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1023353 LAPP ÖLFLEX SERVO 3D 7DSL 4G2,5+(2x1)+(2x22 A

1023353

1023353

LAPP

1 m.

ÖLFLEX SERVO 3D 7DSL 4G2,5+(2x1)+(2x22 A ÖLFLEX® SERVO 3D 7DSL

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Supplying comprehensive connectivity for advanced drive technology, the Lapp 1023353 LAPP ÖLFLEX SERVO 3D 7DSL 4G2,5+(2x1)+(2x22 A acts as a reliable control cable. These composite cables are regularly implemented in automated production machinery to handle power transmission alongside integrated feedback channels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Flammability: UL/CSA: VW-1, FT1 IEC/EN: 60332-1-2
  • For use in power chains: Please comply with assembly guideline Appendix T3
  • Core insulation: Polypropylene (PP) respectively fluorinated ethylene propylene (FEP)
  • Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
  • Data pair: white, blue Control pair: black, white
  • DSL data pair: 19-wired
  • Moved: 10 x outer diameter
  • Fixed installation: 5 x outer diameter
  • Power and control cores: IEC: U0/U: 600/1000 V UL: 600 V Data pair UL: 600 V
  • Power and control: 4 kV Data pair: 1kV
  • Flexing: -40°C to +80°C
  • Fixed installation: -50°C to +80°C
  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable
  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

More info

▲

Benefits

  • Allows much faster speed and accelerations which increases the economic efficiency of the machines
  • Only one connection line between drive and motor-feedback system. Instead of the encoder cable a specific integrated data pair takes over the signalling.
  • Less cables and reduced connection costs
  • Space and weight savings thanks to hybrid cable design
  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media

Application range

  • Connecting cable between servo controller and motor
  • In industrial robots, moving machine parts or drag chains
  • Automated handling equipment
  • Particularly in wet areas of machine tools and transfer lines
  • Inside of dresspacks of buckling arm robots and for use for gantry robots
  • For indoor and outdoor use

Product features

  • High oil-resistance
  • Abrasion and notch-resistant
  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Flexible at low temperatures
  • Low-capacitance design

Norm references / Approvals

  • UL AWM Style 21223
    cRU AWM I/II A/B FT1
  • UL File No. E63634
  • Designed for up to 5 million torsion cycles
  • For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

  • Extra-fine-wire, bare copper conductor (power cores and control pair) and 19-wire, tinned copper conductor (data pair)
  • Core insulation: Polypropylene (PP) respectively fluorinated ethylene propylene (FEP)
  • Power cores with screened control pair and data pair twisted together
  • Special tape wrapping
  • Spiral shield made of tinned copper wires
  • Wrapping of PTFE tape
  • PUR outer sheath, black (similar RAL 9005)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

Core identification code

  • Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
  • Data pair: white, blue
    Control pair: black, white

Conductor stranding

  • Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
  • DSL data pair: 19-wired

Torsion

  • Torsion load max. ± 180 °/m

Minimum bending radius

  • Moved: 10 x outer diameter
  • Fixed installation: 5 x outer diameter

Nominal voltage

  • Power and control cores:
    IEC: U0/U: 600/1000 V
    UL: 600 V
    Data pair UL: 600 V

Test voltage

  • Power and control: 4 kV
    Data pair: 1kV

Protective conductor

  • G = with GN-YE protective conductor

Temperature range

  • Flexing: -40°C to +80°C
  • Fixed installation: -50°C to +80°C
