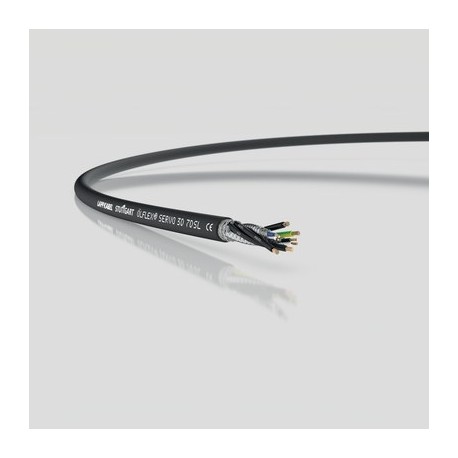

1023352 LAPP ÖLFLEX SERVO 3D 7DSL 4G1,5+(2x1)+(2x22 A
1023352
1023352
LAPP
1 m.
Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1023352 LAPP ÖLFLEX SERVO 3D 7DSL 4G1,5+(2x1)+(2x22 A built by Lapp is a multi-core hybrid servo cable engineered for three-dimensional robotic and dynamic drive applications. This cable accommodates power conductors, control pairs, and data transmission elements simultaneously within a flexible architecture designed for complex articulated motion. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Flammability: UL/CSA: VW-1, FT1 IEC/EN: 60332-1-2
- For use in power chains: Please comply with assembly guideline Appendix T3
- Core insulation: Polypropylene (PP) respectively fluorinated ethylene propylene (FEP)
- Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
- Data pair: white, blue Control pair: black, white
- DSL data pair: 19-wired
- Moved: 10 x outer diameter
- Fixed installation: 5 x outer diameter
- Power and control cores: IEC: U0/U: 600/1000 V UL: 600 V Data pair UL: 600 V
- Power and control: 4 kV Data pair: 1kV
- Flexing: -40°C to +80°C
- Fixed installation: -50°C to +80°C
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
More info
▲Benefits
- Allows much faster speed and accelerations which increases the economic efficiency of the machines
- Only one connection line between drive and motor-feedback system. Instead of the encoder cable a specific integrated data pair takes over the signalling.
- Less cables and reduced connection costs
- Space and weight savings thanks to hybrid cable design
- Increased durability under harsh conditions thanks to robust PUR outer sheath
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
Application range
- Connecting cable between servo controller and motor
- In industrial robots, moving machine parts or drag chains
- Automated handling equipment
- Particularly in wet areas of machine tools and transfer lines
- Inside of dresspacks of buckling arm robots and for use for gantry robots
- For indoor and outdoor use
Product features
- High oil-resistance
- Abrasion and notch-resistant
- Flammability:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2 - Flexible at low temperatures
- Low-capacitance design
Norm references / Approvals
- UL AWM Style 21223
cRU AWM I/II A/B FT1 - UL File No. E63634
- Designed for up to 5 million torsion cycles
- For use in power chains: Please comply with assembly guideline Appendix T3
Product Make-up
- Extra-fine-wire, bare copper conductor (power cores and control pair) and 19-wire, tinned copper conductor (data pair)
- Core insulation: Polypropylene (PP) respectively fluorinated ethylene propylene (FEP)
- Power cores with screened control pair and data pair twisted together
- Special tape wrapping
- Spiral shield made of tinned copper wires
- Wrapping of PTFE tape
- PUR outer sheath, black (similar RAL 9005)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
- Data pair: white, blue
Control pair: black, white
Conductor stranding
- Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
- DSL data pair: 19-wired
Torsion
- Torsion load max. ± 180 °/m
Minimum bending radius
- Moved: 10 x outer diameter
- Fixed installation: 5 x outer diameter
Nominal voltage
- Power and control cores:
IEC: U0/U: 600/1000 V
UL: 600 V
Data pair UL: 600 V
Test voltage
- Power and control: 4 kV
Data pair: 1kV
Protective conductor
- G = with GN-YE protective conductor
Temperature range
- Flexing: -40°C to +80°C
- Fixed installation: -50°C to +80°C
