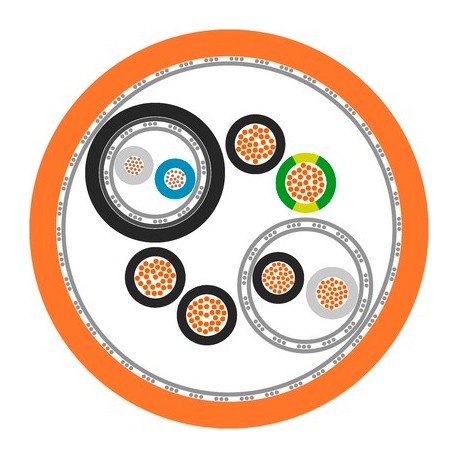

LAPP 1023274 1023274 LAPP ÖLFLEX SERVO FD 7DSL 4G1+(2x0,75)+(2x... View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1023274 LAPP ÖLFLEX SERVO FD 7DSL 4G1+(2x0,75)+(2x...

1023274

1023274

LAPP

1 m.

ÖLFLEX SERVO FD 7DSL 4G1+(2x0,75)+(2x... ÖLFLEX® SERVO FD 7DSL

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for demanding dynamic applications, the Lapp 1023274 ÖLFLEX SERVO FD 7DSL 4G1+(2x0,75)+(2x... serves as a reliable hybrid servo control cable. Multi-conductor setups of this nature are widely utilized in industrial automation environments to simultaneously supply motor power, control signals, and feedback data within continuous flexing cable tracks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Maximum DSL transmission length: 100m
  • Flammability: UL/CSA: VW-1, FT1 IEC/EN: 60332-1-2
  • For use in power chains: Please comply with assembly guideline Appendix T3
  • Core insulation: polypropylene (PP)
  • Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
  • Signal pair: white, blue Control pair (optional): black with white numbers 5 + 6
  • DSL data pair: 19-wired
  • Flexing: up from 7.5 x outer diameter
  • Fixed installation: 5 x outer diameter
  • Power and control: IEC: U0/U: 600/1000 V UL: 1000 V Signal pair: 300 V
  • Power and control: 4 kV Data pair: 1kV
  • Flexing: -40°C to +90°C (UL: +80°C)
  • Fixed installation: -50°C to +90°C (UL: +80°C)
  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable
  • ETIM 6.0 Class-ID: EC000104

More info

▲

Benefits

  • Allows much faster speed and accelerations which increases the economic efficiency of the machines
  • Only one connection line between drive and motor-feedback system. Instead of the encoder cable a specific integrated data pair takes over the signalling.
  • Less cables and reduced connection costs
  • Space and weight savings thanks to hybrid cable design
  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media

Application range

  • Power drive systems in automation engineering
  • Connecting cable between servo controller and motor
  • In power chains or moving machine parts
  • For use in assembling & pick-and-place machinery
  • Particularly in wet areas of machine tools and transfer lines

Product features

  • Maximum DSL transmission length: 100m
  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Halogen-free materials
  • Low-capacitance design
  • Oil-resistant

Norm references / Approvals

  • UL AWM Style 21223
    cRU AWM I/II A/B FT1
  • UL File No. E63634
  • For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

  • Extra-fine-wire, bare copper conductor (power cores and control pair) and 19-wire, tinned copper conductor (data pair)
  • Core insulation: polypropylene (PP)
  • Individual design depending on the item: power cores without or with one screened control pair and one DSL data pair twisted together
  • Non-woven wrapping
  • Tinned-copper braiding
  • PUR outer sheath, orange (RAL 2003)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

Core identification code

  • Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
  • Signal pair: white, blue
    Control pair (optional): black with white numbers 5 + 6

Conductor stranding

  • Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
  • DSL data pair: 19-wired

Minimum bending radius

  • Flexing: up from 7.5 x outer diameter
  • Fixed installation: 5 x outer diameter

Nominal voltage

  • Power and control:
    IEC: U0/U: 600/1000 V
    UL: 1000 V
    Signal pair: 300 V

Test voltage

  • Power and control: 4 kV
    Data pair: 1kV

Protective conductor

  • G = with GN-YE protective conductor

Temperature range

  • Flexing: -40°C to +90°C
    (UL: +80°C)
  • Fixed installation: -50°C to +90°C
    (UL: +80°C)

Bending cycles & operation parameters

  • See Selection Table A2-1 in the appendix of our online catalogue
