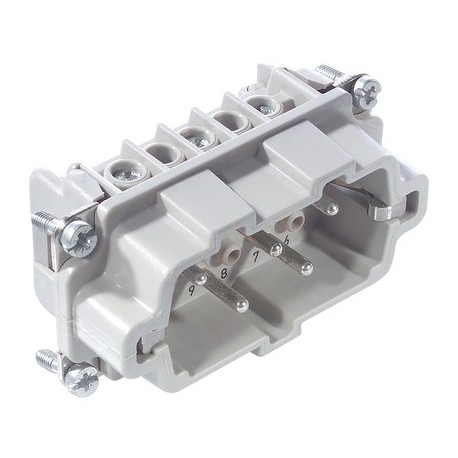

LAPP 10210010 10210010 EPIC H-BVE 3 SS DR LAPP EPIC H-BVE 3 SS DR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10210010 EPIC H-BVE 3 SS DR LAPP EPIC H-BVE 3 SS DR

10210010

10210010

EPIC H-BVE 3 SS DR

LAPP

10 Pcs.

EPIC H-BVE 3 SS DR EPIC® H-BVE 3

Connectors > Contact insert for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for high-voltage rectangular connector frames, the Lapp 10210010 EPIC H-BVE 3 SS DR contact insert provides secure socket termination. Industrial connector inserts maintain structured electrical isolation and dependable pin engagement in harsh environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • IEC: 630 V UL: 600 V CSA: 600 V
  • IEC: 16 A UL: 16 A CSA: 16 A
  • Screw termination: 0.5 - 2.5 mm²
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

The multi-pole insert has delayed switching contacts, which interrupt the power supply of the respective connection before the working contacts are disconnected.

  • Multipole insert with lagging switch contacts
  • Switching operations possible for disconnecting under load

Benefits

  • These high-voltage inserts are additionally equipped with 2 switching contacts
  • With the relevant wiring, the lagging switch contacts interrupt the power supply before the working contacts are separated

Application range

  • Plant engineering
  • Mechanical engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 630 V
    UL: 600 V
    CSA: 600 V

Rated impulse voltage

  • 6 kV

Rated current (A)

  • IEC: 16 A
    UL: 16 A
    CSA: 16 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 3 + 2 + PE

Termination methods

  • Screw termination: 0.5 - 2.5 mm²

Stripping length (mm)

  • 8

Cycle of mechanical operation

  • 100

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
