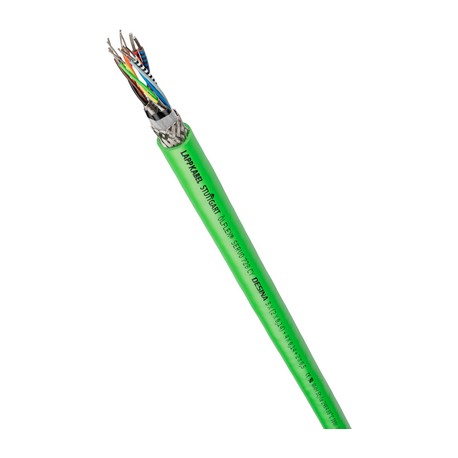

1020134 LAPP ÖLFLEX SERVO 728 CY (7x2x0,14+2x0,5)
1020134
1020134
LAPP
1 m.
Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for complex drive connections, the 1020134 LAPP ÖLFLEX SERVO 728 CY (7x2x0,14+2x0,5) acts as a specialized control cable. Such multi-core shielded configurations are typically deployed in automated manufacturing lines to transmit feedback signals and control data between servo drives and feedback encoders.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Flammability: UL/CSA: VW-1, FT1 IEC/EN: 60332-1-2
- Core insulation: polypropylene (PP)
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
- IEC: 30 V
- UL & CSA: 300 V
- C/C: 2000 V C/S: 1000 V
- Occasional flexing: -5°C to +70°C (UL: +80°C) Fixed installation: -40°C to +80°C
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
More info
▲Benefits
- Suitable for use with encoders & resolvers from leading manufacturers
- Thin, optimised for weight and volume
- Multi-standard certification reduces part varieties and saves costs
- Easy to install
Application range
- Analogue and incremental encoders in servo drives
- For static and occasionally flexible use
- Measurement, control and electrical applications
- Industrial machinery and plant engineering
- Only for outdoor use within the indicated operating temperature range, with UV-protection
Product features
- Flammability:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2 - Low attenuation ensures a longer transmission distance
- Oil-resistant
Norm references / Approvals
- UL AWM Style 2464
- cUL AWM I/II A/B FT1
- UL File No. E63634
Product Make-up
- Fine-wire, tinned-copper conductor
- Core insulation: polypropylene (PP)
- Cores (or core pairs) twisted in layers or bundles
- Refer to data sheet for more details
- Non-woven wrapping
- PVC jacket, green (RAL 6018)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Details see datasheet
ÖLFLEX® SERVO 728 CY
Conductor stranding
- Fine wire acc. to VDE 0295, class 5 / IEC 60228 class 5 from 0.5 mm²
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- IEC: 30 V
- UL & CSA: 300 V
Test voltage
- C/C: 2000 V
C/S: 1000 V
Temperature range
- Occasional flexing:
-5°C to +70°C (UL: +80°C)
Fixed installation: -40°C to +80°C
