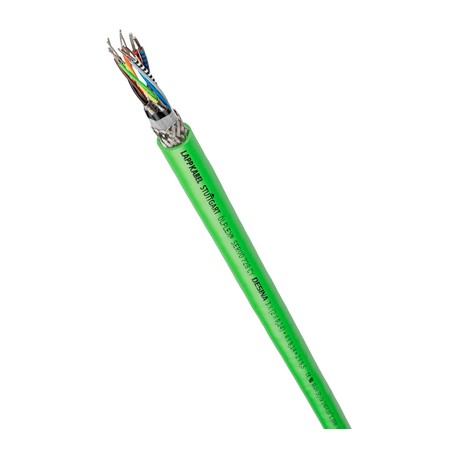

LAPP 1020132 1020132 LAPP ÖLFLEX SERVO 728 CY 4x(2x0,14)+(2x1,0) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1020132 LAPP ÖLFLEX SERVO 728 CY 4x(2x0,14)+(2x1,0)

1020132

1020132

LAPP

1 m.

ÖLFLEX SERVO 728 CY 4x(2x0,14)+(2x1,0) ÖLFLEX® SERVO 728 CY

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered as a specialized Lapp control cable, the ÖLFLEX SERVO 728 CY 4x(2x0,14)+(2x1,0) assembly handles delicate signal and power transmission in compact drive architectures. System builders incorporate this configuration into robotics, feedback loops, and automated positioning systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Flammability: UL/CSA: VW-1, FT1 IEC/EN: 60332-1-2
  • Core insulation: polypropylene (PP)
  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter
  • IEC: 30 V
  • UL & CSA: 300 V
  • C/C: 2000 V C/S: 1000 V
  • Occasional flexing: -5°C to +70°C (UL: +80°C) Fixed installation: -40°C to +80°C
  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

More info

▲

ÖLFLEX® SERVO 728 CY - shielded rotary encoder cable for fixed installation or occasional flexing with UL/cUL AWM certification

  • Successor of ÖLFLEX® SERVO 720 CY
  • Fits to various encoder systems
  • Low-capacitance design

Benefits

  • Suitable for use with encoders & resolvers from leading manufacturers
  • Thin, optimised for weight and volume
  • Multi-standard certification reduces part varieties and saves costs
  • Easy to install

Application range

  • Analogue and incremental encoders in servo drives
  • For static and occasionally flexible use
  • Measurement, control and electrical applications
  • Industrial machinery and plant engineering
  • Only for outdoor use within the indicated operating temperature range, with UV-protection

Product features

  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Low attenuation ensures a longer transmission distance
  • Oil-resistant

Norm references / Approvals

  • UL AWM Style 2464
  • cUL AWM I/II A/B FT1
  • UL File No. E63634

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Core insulation: polypropylene (PP)
  • Cores (or core pairs) twisted in layers or bundles
  • Refer to data sheet for more details
  • Non-woven wrapping
  • PVC jacket, green (RAL 6018)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Core identification code

  • Details see datasheet
    ÖLFLEX® SERVO 728 CY

Conductor stranding

  • Fine wire acc. to VDE 0295, class 5 / IEC 60228 class 5 from 0.5 mm²

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter

Nominal voltage

  • IEC: 30 V
  • UL & CSA: 300 V

Test voltage

  • C/C: 2000 V
    C/S: 1000 V

Temperature range

  • Occasional flexing:
    -5°C to +70°C (UL: +80°C)
    Fixed installation: -40°C to +80°C
