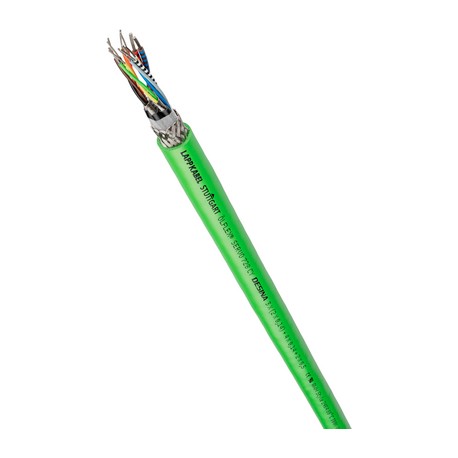

LAPP 1020122 1020122 LAPP ÖLFLEX SERVO 728 CY (4x2x..+(4x0.14)) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1020122 LAPP ÖLFLEX SERVO 728 CY (4x2x..+(4x0.14))

1020122

1020122

LAPP

1 m.

ÖLFLEX SERVO 728 CY (4x2x..+(4x0.14)) ÖLFLEX® SERVO 728 CY

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured as a Lapp 1020122 LAPP ÖLFLEX SERVO 728 CY (4x2x..+(4x0.14)), this control cable provides multi-pair signal and feedback routing for demanding servo drive setups. Specialized encoder and feedback cables are essential components in closed-loop motion control systems, ensuring accurate data communication between controllers and actuators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Flammability: UL/CSA: VW-1, FT1 IEC/EN: 60332-1-2
  • Core insulation: polypropylene (PP)
  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter
  • IEC: 30 V
  • UL & CSA: 300 V
  • C/C: 2000 V C/S: 1000 V
  • Occasional flexing: -5°C to +70°C (UL: +80°C) Fixed installation: -40°C to +80°C
  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

More info

▲

ÖLFLEX® SERVO 728 CY - shielded rotary encoder cable for fixed installation or occasional flexing with UL/cUL AWM certification

  • Successor of ÖLFLEX® SERVO 720 CY
  • Fits to various encoder systems
  • Low-capacitance design

Benefits

  • Suitable for use with encoders & resolvers from leading manufacturers
  • Thin, optimised for weight and volume
  • Multi-standard certification reduces part varieties and saves costs
  • Easy to install

Application range

  • Analogue and incremental encoders in servo drives
  • For static and occasionally flexible use
  • Measurement, control and electrical applications
  • Industrial machinery and plant engineering
  • Only for outdoor use within the indicated operating temperature range, with UV-protection

Product features

  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Low attenuation ensures a longer transmission distance
  • Oil-resistant

Norm references / Approvals

  • UL AWM Style 2464
  • cUL AWM I/II A/B FT1
  • UL File No. E63634

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Core insulation: polypropylene (PP)
  • Cores (or core pairs) twisted in layers or bundles
  • Refer to data sheet for more details
  • Non-woven wrapping
  • PVC jacket, green (RAL 6018)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Core identification code

  • Details see datasheet
    ÖLFLEX® SERVO 728 CY

Conductor stranding

  • Fine wire acc. to VDE 0295, class 5 / IEC 60228 class 5 from 0.5 mm²

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter

Nominal voltage

  • IEC: 30 V
  • UL & CSA: 300 V

Test voltage

  • C/C: 2000 V
    C/S: 1000 V

Temperature range

  • Occasional flexing:
    -5°C to +70°C (UL: +80°C)
    Fixed installation: -40°C to +80°C
