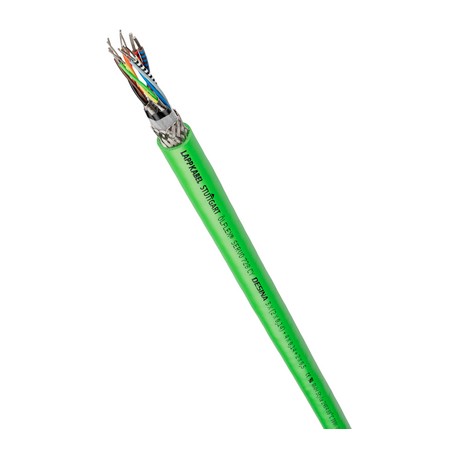

1020120 LAPP ÖLFLEX SERVO 728 CY (4x2x0,25+2x0,5)
1020120
1020120
LAPP
1 m.
ÖLFLEX SERVO 728 CY (4x2x0,25+2x0,5)
ÖLFLEX® SERVO 728 CY
Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲ÖLFLEX® SERVO 728 CY - shielded encoder cable for fixed installation or occasional mobile use with UL/cUL AWM approval
- Successor to the ÖLFLEX® SERVO 720 CY
- Adapted to encoder systems from various manufacturers
- Low-capacity design
proceeds
- Suitable for use in encoders and resolvers from major manufacturers
- Optimized size, weight and volume
- Its multiple certificates allow to reduce the stocks of different products, thus reducing storage costs
- Easy installation
Scope of use
- Analog and incremental encoders in servo applications
- For fixed installation and occasional flexible use
- Electrical and measurement and control applications.
- Construction of machines and installations
- Exclusive outdoor use only if protected against UV and within the indicated temperature range
Product features
- Fire performance: UL/CSA VW-1, FT1 IEC/EN 60332-1-2
- A low attenuation allows the transmission of signals over long distances.
- Oil resistant
Reference Standards / Approvals
- UL AWM Style 2464
- cUL AWM I/II A/B FT1
- UL File No. E63634
Product composition
- Conductor formed by fine wires of tinned copper
- Conductor isolation: polypropylene (PP)
- Conductors (or pairs of conductors) braided into layers or bundles
- For additional information, see the datasheet
- Nonwoven envelope
- PVC cover, green (RAL 6018)
ETS Classification 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class Description: Control Cable
Driver Identification Code
- Detailed info in the ÖLFLEX® SERVO 728 CY data sheet
Driver training
- Fine wire, according to VDE 0295, cIase 5 / IEC 60228 cIase 5 from 0.5 mm²
Minimum radius of curvature
- Occasional flexible use: 15 x outside diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- IEC: 30 V
- UL & CSA: 300 V
Test voltage
- C/C: 2000 VC/S: 1000 V
Temperature range
- Occasional movement:
-5ºC to +70ºC (UL: +80ºC)
Fixed installation: -40ºC to +80ºC
