View larger
Images are for illustrative purposes only. Please refer to data sheet for details

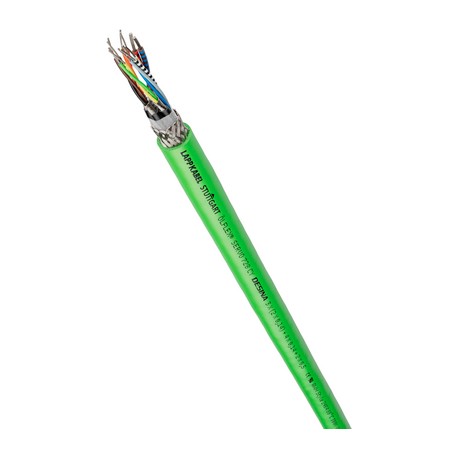

1020111 LAPP ÖLFLEX SERVO 728 CY (3x(2x0,14)..2x0,5)
1020111
1020111
LAPP
1 m.
ÖLFLEX SERVO 728 CY (3x(2x0,14)..2x0,5)
ÖLFLEX® SERVO 728 CY
Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Benefits
- Suitable for use with encoders & resolvers from leading manufacturers
- Thin, optimised for weight and volume
- Multi-standard certification reduces part varieties and saves costs
- Easy to install
Application range
- Analogue and incremental encoders in servo drives
- For static and occasionally flexible use
- Measurement, control and electrical applications
- Industrial machinery and plant engineering
- Only for outdoor use within the indicated operating temperature range, with UV-protection
Product features
- Flammability:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2 - Low attenuation ensures a longer transmission distance
- Oil-resistant
Norm references / Approvals
- UL AWM Style 2464
- cUL AWM I/II A/B FT1
- UL File No. E63634
Product Make-up
- Fine-wire, tinned-copper conductor
- Core insulation: polypropylene (PP)
- Cores (or core pairs) twisted in layers or bundles
- Refer to data sheet for more details
- Non-woven wrapping
- PVC jacket, green (RAL 6018)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Details see datasheet
ÖLFLEX® SERVO 728 CY
Conductor stranding
- Fine wire acc. to VDE 0295, class 5 / IEC 60228 class 5 from 0.5 mm²
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- IEC: 30 V
- UL & CSA: 300 V
Test voltage
- C/C: 2000 V
C/S: 1000 V
Temperature range
- Occasional flexing:
-5°C to +70°C (UL: +80°C)
Fixed installation: -40°C to +80°C
