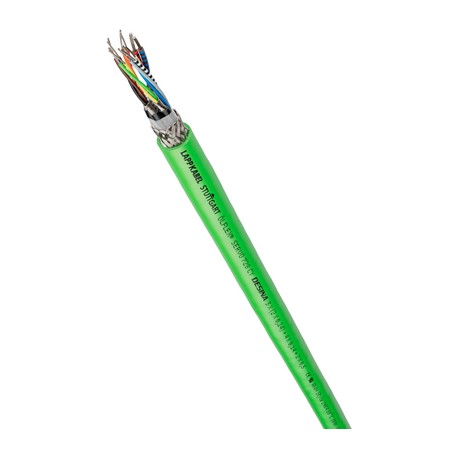

LAPP 1020102 1020102 LAPP ÖLFLEX SERVO 728 CY (15x0,14+4x0,5) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1020102 LAPP ÖLFLEX SERVO 728 CY (15x0,14+4x0,5)

1020102

1020102

LAPP

1 m.

ÖLFLEX SERVO 728 CY (15x0,14+4x0,5) ÖLFLEX® SERVO 728 CY

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for multi-axis automation setups, this Lapp 1020102 LAPP ÖLFLEX SERVO 728 CY (15x0,14+4x0,5) control cable handles feedback and power routing for sophisticated drive mechanisms. Servo control lines facilitate precise positioning and synchronized motion control in modern manufacturing robotics and automated machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Flammability: UL/CSA: VW-1, FT1 IEC/EN: 60332-1-2
  • Core insulation: polypropylene (PP)
  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter
  • IEC: 30 V
  • UL & CSA: 300 V
  • C/C: 2000 V C/S: 1000 V
  • Occasional flexing: -5°C to +70°C (UL: +80°C) Fixed installation: -40°C to +80°C
  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

More info

▲

Benefits

  • Suitable for use with encoders & resolvers from leading manufacturers
  • Thin, optimised for weight and volume
  • Multi-standard certification reduces part varieties and saves costs
  • Easy to install

Application range

  • Analogue and incremental encoders in servo drives
  • For static and occasionally flexible use
  • Measurement, control and electrical applications
  • Industrial machinery and plant engineering
  • Only for outdoor use within the indicated operating temperature range, with UV-protection

Product features

  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Low attenuation ensures a longer transmission distance
  • Oil-resistant

Norm references / Approvals

  • UL AWM Style 2464
  • cUL AWM I/II A/B FT1
  • UL File No. E63634

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Core insulation: polypropylene (PP)
  • Cores (or core pairs) twisted in layers or bundles
  • Refer to data sheet for more details
  • Non-woven wrapping
  • PVC jacket, green (RAL 6018)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Core identification code

  • Details see datasheet
    ÖLFLEX® SERVO 728 CY

Conductor stranding

  • Fine wire acc. to VDE 0295, class 5 / IEC 60228 class 5 from 0.5 mm²

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter

Nominal voltage

  • IEC: 30 V
  • UL & CSA: 300 V

Test voltage

  • C/C: 2000 V
    C/S: 1000 V

Temperature range

  • Occasional flexing:
    -5°C to +70°C (UL: +80°C)
    Fixed installation: -40°C to +80°C
