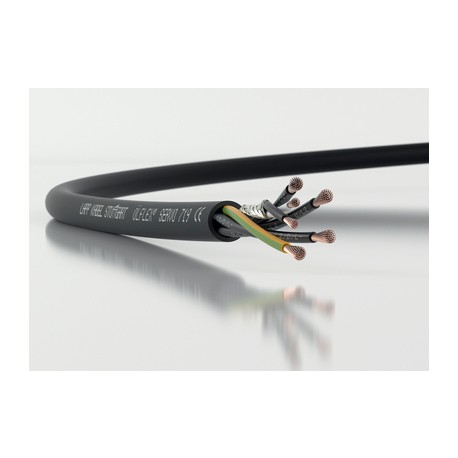

LAPP 1020063 1020063 ÖLFLEX SERVO 719 4G2,5+(2x0,75) LAPP ÖLFLEX SERVO 719 4G2,5+(2x0,75) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1020063 ÖLFLEX SERVO 719 4G2,5+(2x0,75) LAPP ÖLFLEX SERVO 719 4G2,5+(2x0,75)

1020063

1020063

ÖLFLEX SERVO 719 4G2,5+(2x0,75)

LAPP

1 m.

ÖLFLEX SERVO 719 4G2,5+(2x0,75) ÖLFLEX® SERVO 719

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 1020063 ÖLFLEX SERVO 719 4G2,5+(2x0,75) LAPP ÖLFLEX SERVO 719 4G2,5+(2x0,75) serves as a specialized control cable engineered to support complex servo drive systems in manufacturing plants. Industrial lines of this variety typically handle both motor power supply and feedback signal transmission simultaneously within automated machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Flammability: UL/CSA: VW-1, FT1 IEC/EN: 60332-1-2: Flammability: UL/CSA: VW-1, FT1 IEC/EN: 60332-1-2
  • USA: UL AWM Style 2570 Canada: cUL AWM Style I/II A/B FT1: USA: UL AWM Style 2570 Canada: cUL AWM Style I/II A/B FT1
  • Core insulation: polypropylene (PP): Core insulation: polypropylene (PP)
  • Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor: Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
  • Occasional flexing: 15 x outer diameter: Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter: Fixed installation: 6 x outer diameter
  • Power cores and control cores: IEC U0/U: 600/1000 V; UL & CSA: 1000 V: Power cores and control cores: IEC U0/U: 600/1000 V; UL & CSA: 1000 V
  • Core/Core: 4 kV: Core/Core: 4 kV
  • Core/Screen: 4 kV: Core/Screen: 4 kV
  • Occasional flexing: -5°C to +70°C (UL: +80°C) Fixed installation: -40°C to +80°C: Occasional flexing: -5°C to +70°C (UL: +80°C) Fixed installation: -40°C to +80°C
  • ETIM 5.0 Class-ID: EC000104: ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable: ETIM 5.0 Class-Description: Control cable
  • ETIM 6.0 Class-ID: EC000104: ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable: ETIM 6.0 Class-Description: Control cable

More info

▲

ÖLFLEX® SERVO 719 - low capacitance servo cable for fixed installation or occasional flexing with UL/cUL AWM certification

  • Successor of ÖLFLEX® SERVO 700
  • Low-capacitance design
  • Without overall screening

Benefits

  • One common cable for multiple circuits
  • Longer cable installation lengths thanks to low mutual capacitance cable design
  • Multi-standard certification reduces part varieties and saves costs
  • Space and weight-saving installations due to small cable diameters

Application range

  • Connecting cable between servo controller and motor
  • For static and occasionally flexible use
  • Plant engineering
  • Industrial machinery and machine tools
  • Printing machines

Product features

  • Low capacitance
  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Oil-resistant

Norm references / Approvals

  • USA: UL AWM Style 2570
    Canada: cUL AWM Style I/II A/B FT1
  • UL File No. E63634

Product Make-up

  • Fine-wire, bare copper conductor
  • Core insulation: polypropylene (PP)
  • Individual design depending on the item: power cores without or with one or two individually screened control core pairs twisted together in short lay lengths
  • PVC outer sheath, black (RAL 9005)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

Core identification code

  • Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
  • Single-paired versions: black; white
    Double-paired versions: black with white numbers 5; 6; 7; 8
    0,34mm² pairs: WH/BN/GN/YE

Conductor stranding

  • Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter

Nominal voltage

  • Power cores and control cores:
    IEC U0/U: 600/1000 V
  • UL & CSA: 1000 V

Test voltage

  • Core/Core: 4 kV
  • Core/Screen: 4 kV

Protective conductor

  • G = with GN-YE protective conductor

Temperature range

  • Occasional flexing:
    -5°C to +70°C (UL: +80°C)
    Fixed installation: -40°C to +80°C
