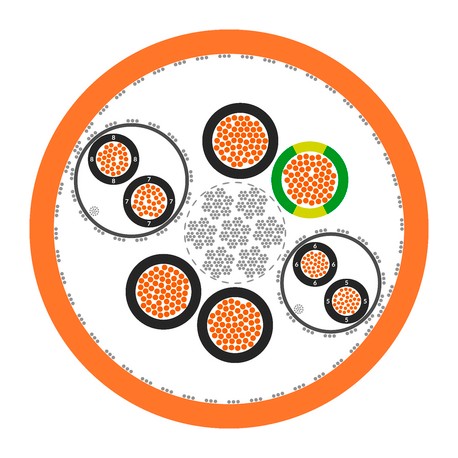

LAPP 1020050 1020050 LAPP ÖLFLEX SERVO 719 CY 4G16+(2x1,0) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1020050 LAPP ÖLFLEX SERVO 719 CY 4G16+(2x1,0)

1020050

1020050

LAPP

1 m.

ÖLFLEX SERVO 719 CY 4G16+(2x1,0) ÖLFLEX® SERVO 719 CY

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ÖLFLEX® SERVO 719 CY - Screened, low capacitive servo cable for fixed installation or occasional flexing with UL/cUL AWM certification

  • Successor of ÖLFLEX® SERVO 700 CY and ÖLFLEX® SERVO 709 CY
  • Low-capacitance design
  • Product range extension

Benefits

  • Suitable for use with servomotor product lines from leading drive manufacturers
  • Longer cable installation lengths thanks to low mutual capacitance cable design
  • Multi-standard certification reduces part varieties and saves costs
  • Space and weight-saving installations due to small cable diameters
  • Copper braiding screens the cable against
    electromagnetic interference

Application range

  • Connecting cable between servo controller and motor
  • For static and occasionally flexible use
  • Plant engineering
  • Industrial machinery and machine tools
  • Printing machines

Product features

  • Low capacitance
  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Oil-resistant
  • EMC-compliant

Norm references / Approvals

  • USA: UL AWM Style 2570
    Canada: cUL AWM Style I/II A/B FT1
  • UL File No. E63634

Product Make-up

  • Fine-wire, bare copper conductor
  • Core insulation: polypropylene (PP)
  • Individual design depending on the item:
    Power cores without or with one or two individually shielded control core pairs twisted together in short lay lengths;
    Power cores with control core triplet twisted together in short lay lengths
  • Tinned copper screen braiding
  • PVC outer sheath, orange (RAL 2003)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

Core identification code

  • Power cores: black with marking U/L1/C/L+; V/L2; W/L3/D /L-; GN/YE protective conductor
  • Single-paired versions: individual design depending on the item black; white or brown; white
    Double-paired versions: black with white numbers 5; 6; 7; 8
    0.34 mm² pairs: WH/BN/GN/YE
    Triplet: black with white numbers 1; 2; 3

Conductor stranding

  • Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter

Nominal voltage

  • Power cores and control cores:
    IEC U0/U: 600/1000 V
  • UL & CSA: 1000 V

Test voltage

  • Core/Core: 4 kV
  • Core/Screen: 4 kV

Protective conductor

  • G = with GN-YE protective conductor

Temperature range

  • Occasional flexing:
    -5°C to +70°C (UL: +80°C)
    Fixed installation: -40°C to +80°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
