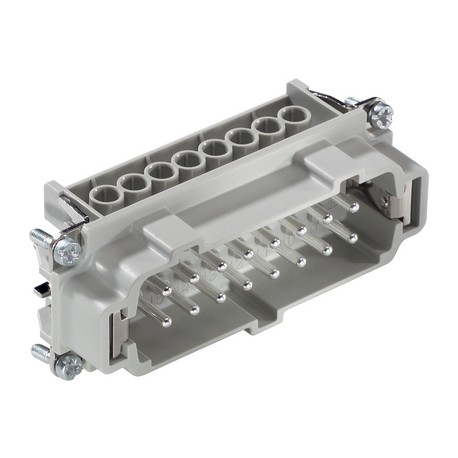

EPIC H-BE 16 BS EPIC® H-BE 16 Screw termination

Connectors > Contact insert for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 10195100 screw-termination contact insert delivers robust electrical linking for heavy-duty industrial connector frameworks. Automation engineers select this part type to establish secure power and control lines that withstand demanding factory floors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Railway applications - Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3
  • IEC: 500 VUL: 600 VCSA: 600 V
  • IEC: 16 A UL: 16 A CSA: 16 A
  • Screw termination: 0.5 - 2.5 mm²
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

Benefits

  • Standard inserts with screw, crimp cage clamp and Push-In termination
  • The EPIC® H-BE series is suitable for applications that require a reliable connection when working with high voltages and currents
  • Railway applications
    - Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3
  • UL tested for application in control cabinets according UL 508 / UL 2237

Application range

  • Mechanical engineering
  • Plastics industry
  • Light & sound technology
  • Railway applications / vehicle construction

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 500 VUL: 600 VCSA: 600 V

Rated impulse voltage

  • 6 kV

Rated current (A)

  • IEC: 16 A
    UL: 16 A
    CSA: 16 A

Pollution degree

  • 3

Flammability

  • UL94 V-0

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 16 + PE

Termination methods

  • Screw termination: 0.5 - 2.5 mm²

Stripping length (mm)

  • 8

Material

  • PC, polycarbonate

Cycle of mechanical operation

  • 500

Certifications

Temperature range

  • -40°C to +100°C, short-term up to +125°C
