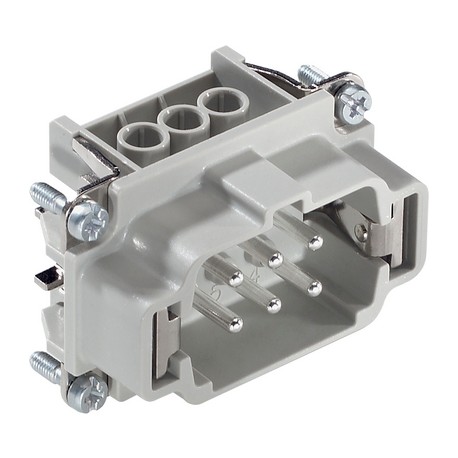

EPIC H-BE 6 BS EPIC® H-BE 6 Screw termination

Connectors > Contact insert for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for rigorous compliance, the Lapp 10191100 EPIC H-BE 6 BS contact insert for industrial connectors delivers safe wire termination for heavy-duty applications. These parts are routinely installed in railway vehicles, industrial automation machinery, and robust control enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Railway applications - Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3
  • IEC: 500 VUL: 600 VCSA: 600 V
  • IEC: 16 A UL: 16 A CSA: 16 A
  • Screw termination: 0.5 - 2.5 mm²
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

The multi-functional insert can be used for a broad range of applications, from mechanical engineering and the plastics industry through to lighting and sound systems.

  • Proven screw for easy installation
  • Screw, crimp, cage clamp and Push-In version - freely combinable
  • Made in Germany

Benefits

  • Standard inserts with screw, crimp cage clamp and Push-In termination
  • The EPIC® H-BE series is suitable for applications that require a reliable connection when working with high voltages and currents
  • Railway applications
    - Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3
  • UL tested for application in control cabinets according UL 508 / UL 2237

Application range

  • Mechanical engineering
  • Plastics industry
  • Light & sound technology
  • Railway applications / vehicle construction

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 500 VUL: 600 VCSA: 600 V

Rated impulse voltage

  • 6 kV

Rated current (A)

  • IEC: 16 A
    UL: 16 A
    CSA: 16 A

Pollution degree

  • 3

Flammability

  • UL94 V-0

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 6 + PE

Termination methods

  • Screw termination: 0.5 - 2.5 mm²

Stripping length (mm)

  • 8

Material

  • PC, polycarbonate

Cycle of mechanical operation

  • 500

Certifications

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
