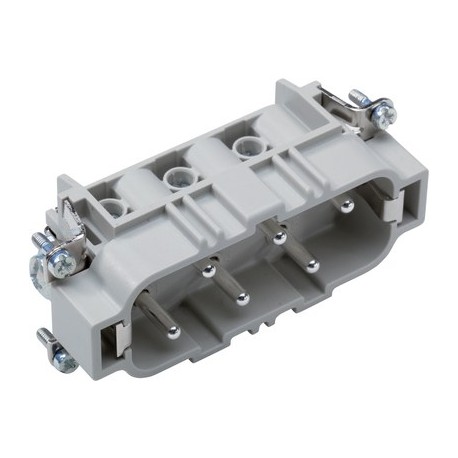

EPIC H-BS 6 SS DR EPIC® H-BS 6

Connectors > Contact insert for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 10170000 EPIC H-BS 6 SS DR LAPP EPIC H-BS 6 SS DR operates as a contact insert for industrial connectors, engineered to handle higher current carrying capacities in heavy-duty power circuits. These robust blocks support reliable screw termination for demanding electrical loads across industrial machinery.

Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Railway applications - Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3
  • IEC: 500 VUL: 600 VCSA: 600 V
  • Conductor - conductor: 690 V
  • IEC: 35 A UL: 35 A CSA: 35 A
  • Screw termination: 0.5 - 6 mm²
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770 and E483837
  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors
  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

More info

▲

The standard connector insert is suitable for current load up to 35 A and can be used, for example, in drive systems or mechanical engineering.

  • Standard insert for currents up to 35A
  • Railway applications
  • Made in Germany

Benefits

  • High rating for currents up to 35 A
  • Screw termination up to a conductor cross section of 6 mm²
  • Railway applications
    - Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3
  • UL tested for application in control cabinets according UL 508 / UL 2237

Application range

  • Plant engineering
  • Mechanical engineering
  • Drive systems
  • Railway applications / vehicle construction

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000438
  • ETIM 5.0 Class-Description: Contact insert for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000438
  • ETIM 6.0 Class-Description: Contact insert for industrial connectors

Rated voltage (V)

  • IEC: 500 VUL: 600 VCSA: 600 V
  • Conductor - conductor: 690 V

Rated impulse voltage

  • 6 kV

Rated current (A)

  • IEC: 35 A
    UL: 35 A
    CSA: 35 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 6 + PE

Termination methods

  • Screw termination: 0.5 - 6 mm²

Stripping length (mm)

  • 8

Cycle of mechanical operation

  • 100

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770 and E483837

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
