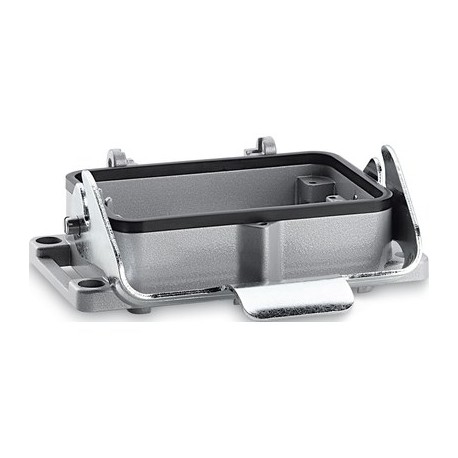

10161000 H-B 48 AG PANEL MOUNT BASE LAPP H-B 48 AG PANEL MOUNT BASE
10161000
10161000
H-B 48 AG PANEL MOUNT BASE
LAPP
1 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing a stationary bulkhead or panel mounting interface, the Lapp 10161000 H-B 48 AG PANEL MOUNT BASE securely hosts large multi-pin connector inserts. Panel mounting bases form the structural anchor point for pluggable wiring systems on machine enclosures and electrical distribution cabinets. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- H-A case: Wall base
- Included: flat gasket
- Housing: powder-coated aluminium alloy, grey Lever: zinc-plated steel Sealing: NBR
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The large connector housing for two inserts ensures that the power and data are in a single component. It can be used, for example, in the plastics industry.
Benefits
- The large, robust housing for two inserts in one connector. Power and data in a single connector
Application range
- Plant engineering
- Plastics industry
Product features
- H-A case: Wall base
- Single lever
- Included: flat gasket
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
Temperature range
- -40°C to +100°C, short-term up to +125°C
