10160000 EPIC H-B 48 TS 42 ZW LAPP EPIC H-B 48 TS 42 ZW
10160000
10160000
EPIC H-B 48 TS 42 ZW
LAPP
1 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

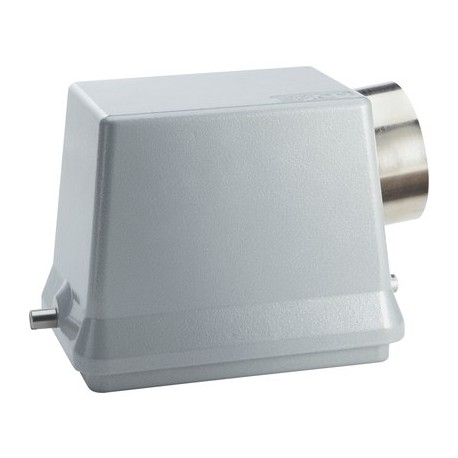

Shielding complex plug-in modular contacts, the Lapp 10160000 EPIC H-B 48 TS 42 ZW LAPP EPIC H-B 48 TS 42 ZW functions as an industrial connector housing. These heavy-duty enclosures find frequent deployment in large automation systems and manufacturing lines where multiple signal or power paths require collective physical protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: aluminium alloy, grey
- Lever: zinc-plated steel
- Sealing: NBR
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The robust connector housing consists of a side cable entry and pivots for a single lever and can be used, for example, in investment construction.
Benefits
- The large, robust housing for two inserts in one connector. Power and data in a single connector
Application range
- Plant engineering
- Plastics industry
Product features
- Hood
- Bolts for single lever
- Side cable entry
- Versions with / without neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
Temperature range
- -40°C to +100°C, short-term up to +125°C
