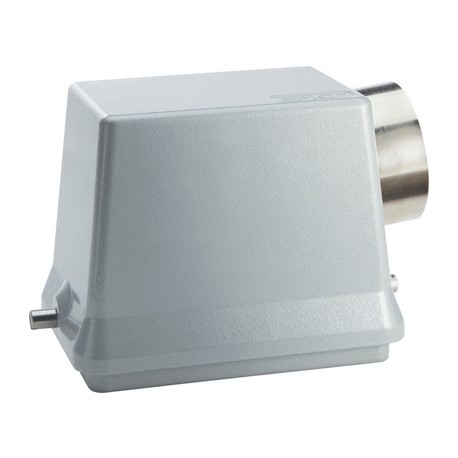

LAPP 10159200 10159200 EPIC H-B 48 TS 36 LAPP EPIC H-B 48 TS 36 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10159200 EPIC H-B 48 TS 36 LAPP EPIC H-B 48 TS 36

10159200

10159200

EPIC H-B 48 TS 36

LAPP

1 Pcs.

EPIC H-B 48 TS 36 EPIC® H-B 48 TS

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Enclosing massive multi-pin insert configurations, the Lapp 10159200 EPIC H-B 48 TS 36 LAPP EPIC H-B 48 TS 36 is an industrial connector housing. Such large-format housings are widely utilized in heavy manufacturing plants, robotic assembly cells, and industrial power distribution units to protect complex wiring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust connector housing consists of a side cable entry and pivots for a single lever and can be used, for example, in investment construction.

Benefits

  • The large, robust housing for two inserts in one connector. Power and data in a single connector

Application range

  • Plant engineering
  • Plastics industry

Product features

  • Hood
  • Bolts for single lever
  • Side cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)

Temperature range

  • -40°C to +100°C, short-term up to +125°C
