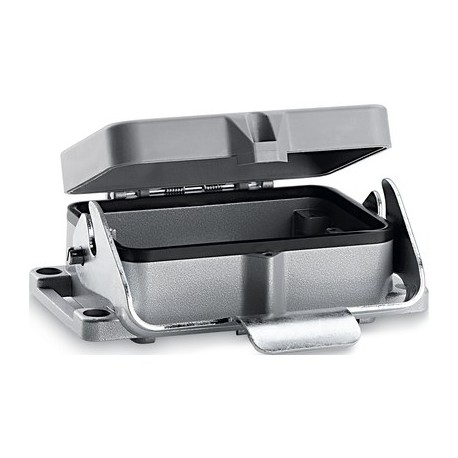

LAPP 10152000 10152000 H-B 48 AD PANEL MOUNT BASE LAPP H-B 48 AD PANEL MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10152000 H-B 48 AD PANEL MOUNT BASE LAPP H-B 48 AD PANEL MOUNT BASE

10152000

10152000

H-B 48 AD PANEL MOUNT BASE

LAPP

1 Pcs.

H-B 48 AD PANEL MOUNT BASE EPIC® H-B 48 AD-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a panel mount base, part number 10152000 by Lapp provides a secure surface-mounting interface for modular industrial connector inserts. Panel bases create stable anchor points on machine enclosures and distribution boxes where mating plugs require a firm connection.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • H-A case: Wall base
  • Included: flat gasket
  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust, large housing consists of the pivots for a single lever, a seal and a thermoplastic cap and is suitable for investment construction applications.

Benefits

  • The large, robust housing for two inserts in one connector. Power and data in a single connector

Application range

  • Plant engineering
  • Plastics industry

Product features

  • H-A case: Wall base
  • Single lever
  • Plastic cover
  • Included: flat gasket

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)

Temperature range

  • -40°C to +100°C, short-term up to +125°C
