View larger
Images are for illustrative purposes only. Please refer to data sheet for details

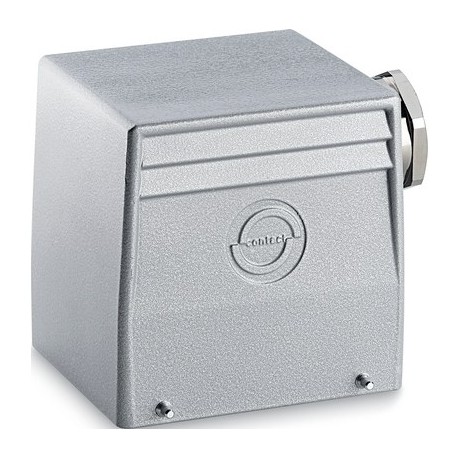

10135600 EPIC H-B 32 TS 29 LAPP EPIC H-B 32 TS 29
10135600
10135600
EPIC H-B 32 TS 29
LAPP
5 Pcs.
EPIC H-B 32 TS 29
EPIC® H-B 32 TS
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲proceeds
- Two inserts in one housing. It has two levers for greater safety.
- SKINTOP reference 53112083: size M40, but with permissible cable clamping diameters of 27 - 35 mm, equivalent to a size M50
Scope of use
- Plant Engineering
- Control Engineering
- Plastics processing industry
Product features
- Housing
- Anchor bolts for double levers
- side cable input
- Models with/without neck
ETS Classification 5
- ETIM 5.0 Class-ID: EC000437
- ETIM Class 5.0 Description: Housing for Industrial Connectors
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: housing for industrial connectors
Material
- Housing:
grey powder-coated aluminium alloy
Lever: zinc coated steel
Sealing: NBR
Degree of protection:
- IP 65 (closed)
Temperature range
- -40°C to +100°C, temporarily up to +125°C
