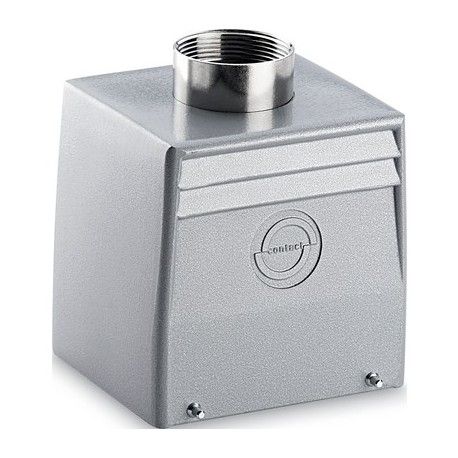

LAPP 10134000 10134000 EPIC H-B 32 TG 29 ZW LAPP EPIC H-B 32 TG 29 ZW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10134000 EPIC H-B 32 TG 29 ZW LAPP EPIC H-B 32 TG 29 ZW

10134000

10134000

EPIC H-B 32 TG 29 ZW

LAPP

5 Pcs.

EPIC H-B 32 TG 29 ZW EPIC® H-B 32 TG

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lapp 10134000 EPIC H-B 32 TG 29 ZW operates as a reliable housing for industrial connectors, providing a secure protective shell for multi-pin terminal blocks in complex automation networks. These protective enclosures maintain tight mechanical seals around wiring terminations, guarding against external contaminants and physical stress on the assembly floor. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

Benefits

  • Two inserts in one housing. With two levers for high safety
  • M40 housing extension on M50 with SKINTOP 53112083 possible (clamping range 27 - 35 mm)

Application range

  • Plant engineering
  • Control engineering
  • Plastics industry

Product features

  • Hood
  • Bolts for double lever
  • Straight cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)

Temperature range

  • -40°C to +100°C, short-term up to +125°C
