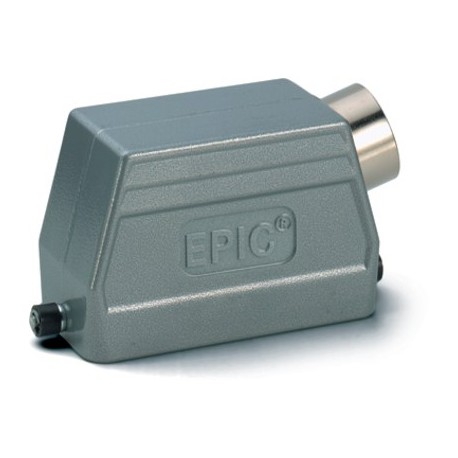

LAPP 10123900 10123900 EPIC H-B 24 TS-RO 29 ZW. HOOD LAPP EPIC H-B 24 TS-RO 29 ZW. HOOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10123900 EPIC H-B 24 TS-RO 29 ZW. HOOD LAPP EPIC H-B 24 TS-RO 29 ZW. HOOD

10123900

10123900

EPIC H-B 24 TS-RO 29 ZW. HOOD

LAPP

5 Pcs.

EPIC H-B 24 TS-RO 29 ZW. HOOD EPIC® H-B 24 TS-RO

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A protective connector hood encases the upper section of multi-pin electrical inserts, routing cables securely into control panels and machinery. It prevents dust and liquid ingress while providing an ergonomic grip for disconnecting heavy industrial cables. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey Lever: zinc-plated steel Sealing: NBR
  • NEMA 250, UL50E: 12 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The housing with a side cable entry and pivots for a single lever is ideal for use, for example, in investment construction and can be supplied with or without a neck.

  • Non-slip ridges for comfortable disconnecting
  • Protection rating UL50E tested

Benefits

  • Ideal for many applications due to a wide range of housings and inserts

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Hood, low version
  • Reels for single lever
  • Side cable entry
  • Versions with neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
