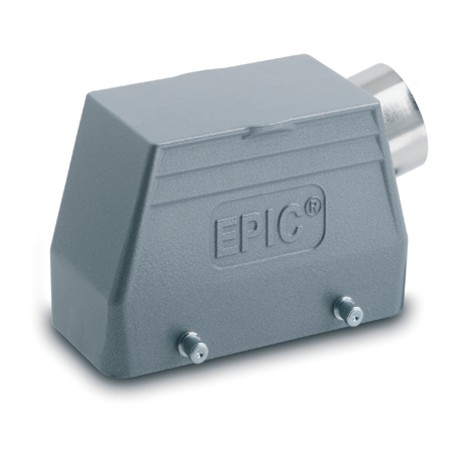

10113000 EPIC H-B 24 TS 21 ZW. HOOD LAPP EPIC H-B 24 TS 21 ZW. HOOD
10113000
10113000
EPIC H-B 24 TS 21 ZW. HOOD
LAPP
5 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lapp 10113000 EPIC H-B 24 TS 21 ZW. HOOD industrial connector hood manages cable routing and mechanical protection for heavy-duty pluggable interfaces. This enclosure defends internal contacts against dust, moisture, and accidental pulls in demanding factory floor applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: powder-coated aluminium alloy, grey
- Lever: zinc-plated steel
- Sealing: NBR
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The robust connector housing can withstand temperatures of up to +125 degrees for a short period and is suitable for use in the plastics industry.
- Non-slip ridges for comfortable disconnecting
- Protection rating UL50E tested
Benefits
- Ideal for many applications due to a wide range of housings and inserts
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Hood, low version
- Bolts for double lever
- Side cable entry
- Versions with neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
