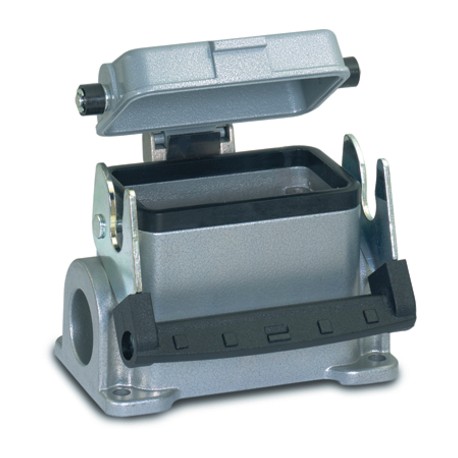

H-B 24 SDRL-LB 21 ZW. BOX MOUNT BASE

LAPP

5 Pcs.

H-B 24 SDRL-LB 21 ZW. BOX MOUNT BASE EPIC® H-B 24 SDRL-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing a robust surface-mounted termination point for large multi-pin assemblies, this Lapp 10109900 H-B 24 SDRL-LB 21 ZW. BOX MOUNT BASE box mount base secures heavy-duty connector inserts on industrial equipment. Box mounting bases are widely utilized in control enclosures and machinery frames to manage incoming cable routing safely. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR; NEMA 250, UL50E: 12 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The metal housing with a single lever and 2 cable entries is able to withstand temperatures of approximately +125 degrees for a short period and can be used, for example, in investment construction.

  • For easy introduction of two cables
  • Metal lid with sturdy hinge
  • Protection rating UL50E tested

Benefits

  • Safe fixing with 4 screws
  • Casted neck for easy assembly of the cable gland
  • Single Lever version for quick locking and simple unlocking with lifting aid

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Surface-mount base, low version
  • Single lever
  • 2 cable entries
  • Metal cover

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
