> LAPP > EPIC rectangular > 10105900

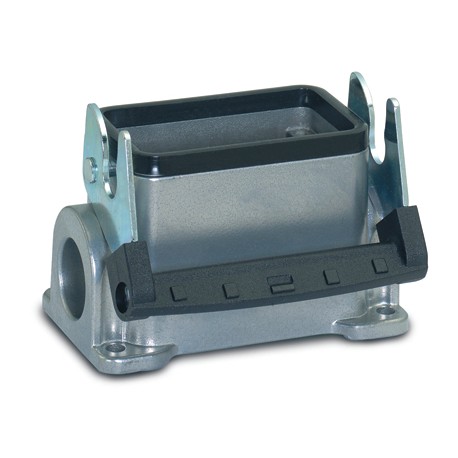

LAPP 10105900 10105900 H-B 24 SGRL-LB 21 ZW. BOX MOUNT BASE LAPP Metal housing, H-B design View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10105900 H-B 24 SGRL-LB 21 ZW. BOX MOUNT BASE LAPP Metal housing, H-B design

10105900

10105900

H-B 24 SGRL-LB 21 ZW. BOX MOUNT BASE

LAPP

5 Pcs.

H-B 24 SGRL-LB 21 ZW. BOX MOUNT BASE EPIC® H-B 24 SGRL-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing a secure panel-mounted receptacle for large multi-pin connectors, this box mount base simplifies complex machine wiring layouts. Hardware such as the Lapp 10105900 protects internal contact blocks from dust and moisture while anchoring external cables firmly in place. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The universal low metal housing consists of a single lever and 2 cable entries. It can be used, for example, in investment construction.

  • For easy introduction of two cables
  • Single Lever version for quick locking and simple unlocking with lifting aid
  • Protection rating UL50E tested

Benefits

  • Safe fixing with 4 screws
  • Casted neck for easy assembly of the cable gland

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Surface-mount base, low version
  • Single lever
  • 2 cable entries

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
