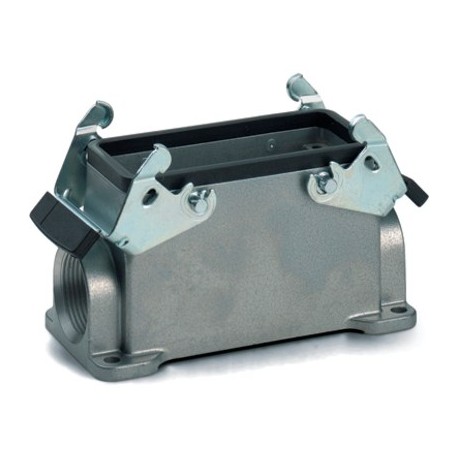

LAPP 10104000 10104000 H-B 24 SGR 21 ZW. BOX MOUNT BASE LAPP Metal housing, H-B design View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10104000 H-B 24 SGR 21 ZW. BOX MOUNT BASE LAPP Metal housing, H-B design

10104000

10104000

H-B 24 SGR 21 ZW. BOX MOUNT BASE

LAPP

5 Pcs.

H-B 24 SGR 21 ZW. BOX MOUNT BASE EPIC® H-B 24 SGR

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for heavy-duty industrial wiring layouts, the Lapp 10104000 H-B 24 SGR 21 ZW. BOX MOUNT BASE serves as a sturdy box mount base housing for industrial connectors across large machinery installations. Surface box bases provide secure mechanical anchorage and environmental shielding for complex multi-pin industrial connector assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust low metal housing consists of 2 double levers and 1 cable entry. It is suitable for use in applications of the plastics industry.

  • Double lever version with 2 levers for increased safety
  • Protection rating UL50E tested

Benefits

  • Safe fixing with 4 screws
  • Casted neck for easy assembly of the cable gland

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Surface-mount base, low version
  • Dual levers
  • 1 cable entry

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
