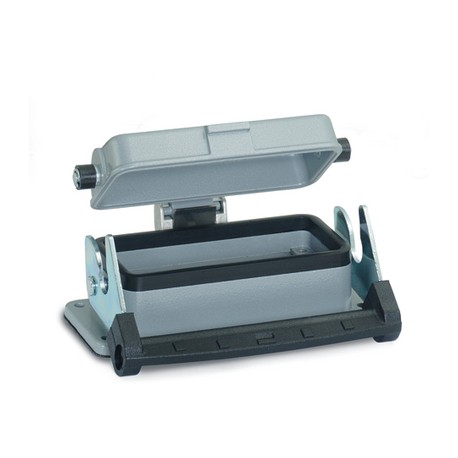

LAPP 10103900 10103900 EPIC H-B 24 AD-LB LAPP Metal housing, H-B design View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10103900 EPIC H-B 24 AD-LB LAPP Metal housing, H-B design

10103900

10103900

EPIC H-B 24 AD-LB

LAPP

5 Pcs.

EPIC H-B 24 AD-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing a reliable wall-mounting interface for multi-pin electrical plugs, this Lapp 10103900 EPIC H-B 24 AD-LB LAPP Metal housing, H-B design functions as an industrial wall base. These panel and surface-mounting bases are common across factory automation networks and electrical distribution boards to anchor robust connections. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • H-A case: Wall base
  • Included: flat gasket
  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust metal housing with a single lever and a seal is ideal for use in the plastics industry.

  • Metal lid with sturdy hinge
  • Single Lever version for quick locking and simple unlocking with lifting aid
  • Protection rating UL50E tested

Benefits

  • Safe fixing with 4 screws

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • H-A case: Wall base
  • Single lever
  • Metal cover
  • Included: flat gasket

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
