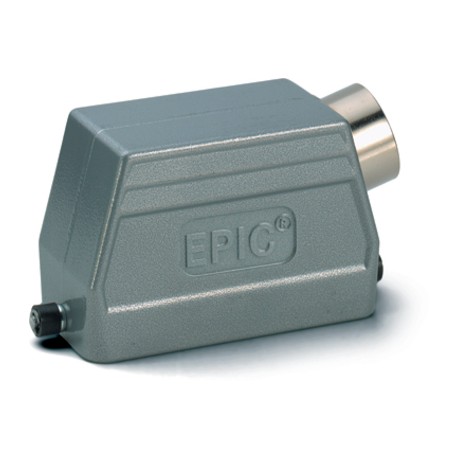

LAPP 10092900 10092900 EPIC H-B 16 TS-RO 29 ZW LAPP Metal housing, H-B design View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10092900 EPIC H-B 16 TS-RO 29 ZW LAPP Metal housing, H-B design

10092900

10092900

EPIC H-B 16 TS-RO 29 ZW

LAPP

5 Pcs.

EPIC H-B 16 TS-RO 29 ZW EPIC® H-B 16 TS-RO

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Shielding internal wiring terminals from harsh operating conditions, the Lapp 10092900 EPIC H-B 16 TS-RO 29 ZW housing for industrial connectors secures mating connector inserts in automated equipment. Metal housings offer dependable mechanical defense for complex industrial control loops. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust low housing with a neck has a side cable entry and pivots for a single lever. It is suitable for use in investment construction.

  • Non-slip ridges for comfortable disconnecting
  • Protection rating UL50E tested

Benefits

  • The housing standard. Wide choice for all applications

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Hood, low version
  • Reels for single lever
  • Side cable entry
  • Versions with neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • UL50 Type 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
