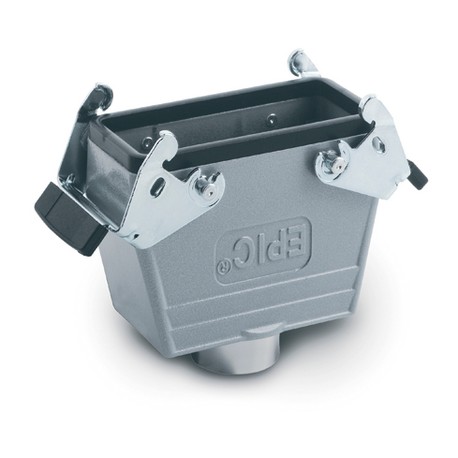

10086000 EPIC H-B 16 TBF 21 ZW. LAPP EPIC H-B 16 TBF 21 ZW. CABLE COUPLER HO
10086000
10086000
EPIC H-B 16 TBF 21 ZW.
LAPP
5 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A cable coupler housing is used in electrical installations to create inline connections between flexible cables and modular wiring systems. It protects internal connector inserts against environmental factors while maintaining secure mechanical retention in complex industrial machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: powder-coated aluminium alloy, grey Lever: zinc-plated steel Sealing: NBR
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The robust metal housing for use in investment construction consists of a direct cable entry and 2 double levers.
- Double lever version with 2 levers for increased safety
- Protection rating UL50E tested
Benefits
- The housing standard. Wide choice for all applications
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Cable coupler hood, low version
- Dual levers
- Straight cable entry
- Versions with / without neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
