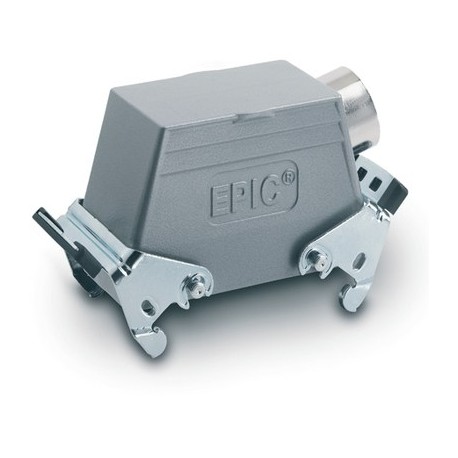

LAPP 10083000 10083000 EPIC H-B 16 TSB 21 ZW LAPP EPIC H-B 16 TSB 21 ZW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10083000 EPIC H-B 16 TSB 21 ZW LAPP EPIC H-B 16 TSB 21 ZW

10083000

10083000

EPIC H-B 16 TSB 21 ZW

LAPP

5 Pcs.

EPIC H-B 16 TSB 21 ZW EPIC® H-B 16 TSB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Enclosing critical electrical interconnections within industrial assemblies, the Lapp 10083000 EPIC H-B 16 TSB 21 ZW LAPP EPIC H-B 16 TSB 21 ZW serves as a protective connector housing. These protective enclosures are widely used in automated production systems and heavy machinery to secure modular contact inserts against physical impact, dust, and fluid ingress. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • NEMA 250, UL50E: 12, 4 (latched)
  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The universal metal housing with 2 double levers and a side cable entry is ideal for lighting and sound system applications.

  • Non-slip ridges for comfortable disconnecting
  • For connection with counterpart with integrated cover
  • NEMA 250, UL50E: 12, 4 (latched)

Benefits

  • The housing standard. Wide choice for all applications
  • Double lever version with 2 levers for increased safety

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Hood, low version
  • Dual levers
  • Side cable entry
  • Versions with neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
