10080000 EPIC H-B 16 TG 21 ZW LAPP EPIC H-B 16 TG 21 ZW
10080000
10080000
EPIC H-B 16 TG 21 ZW
LAPP
5 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

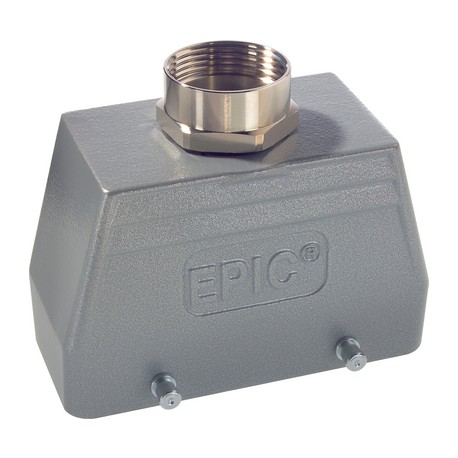

Offering extended interior dimensions for easier cable routing, the Lapp EPIC H-B 16 TG 21 ZW high-version connector hood accommodates dense wiring layouts in automated control systems. Industrial hoods protect multi-pin contact inserts from environmental hazards while facilitating secure cable management at machine interfaces. Pricing and lead times for part number 10080000 are processed through our standard RFQ workflow.
- High version: More interior space for wiring
- Housing: powder-coated aluminium alloy, grey Lever: zinc-plated steel Sealing: NBR
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The robust housing for rectangular connectors with a direct cable entry is suitable for use in lighting and sound systems.
- Non-slip ridges for comfortable disconnecting
- High version: More interior space for wiring
- Protection rating UL50E tested
Benefits
- The housing standard. Wide choice for all applications
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Hood, low version
- Bolts for double lever
- Straight cable entry
- Versions with / without neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
