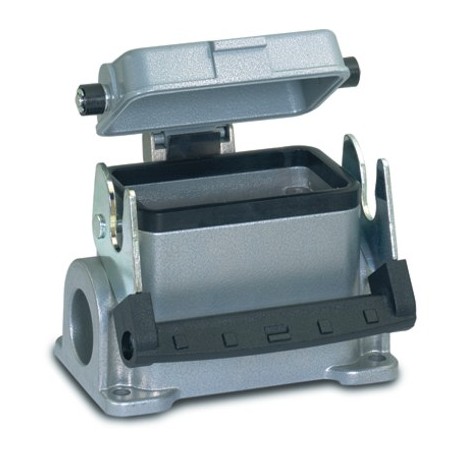

10076900 H-B 16 SDR-LB 21 ZW. BOX MOUNT BASE LAPP H-B 16 SDR-LB 21 ZW. BOX MOUNT BASE
10076900
10076900
H-B 16 SDR-LB 21 ZW. BOX MOUNT BASE
LAPP
5 Pcs.
H-B 16 SDR-LB 21 ZW. BOX MOUNT BASE
EPIC® H-B 16 SDR-LB
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The low metal housing for rectangular connectors consists of a single lever and a cable entry and is suitable for use in the plastics industry.
- Metal lid with sturdy hinge
- Single Lever version for quick locking and simple unlocking with lifting aid
- Protection rating UL50E tested
Benefits
- The housing standard. Wide choice for all applications
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Surface-mount base, low version
- Single lever
- 1 cable entry
- Metal cover
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- UL50 Type 12 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
