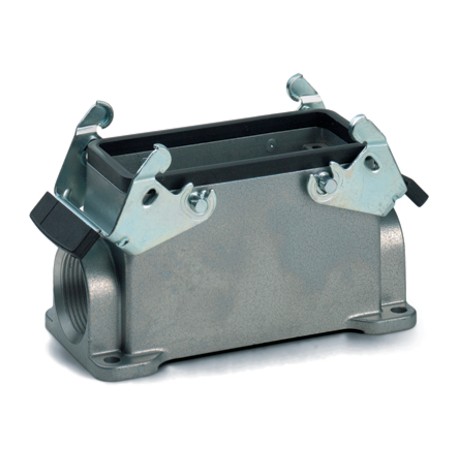

LAPP 10075000 10075000 H-B 16 SGRL 21 ZW. BOX MOUNT BASE LAPP H-B 16 SGRL 21 ZW. BOX MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10075000 H-B 16 SGRL 21 ZW. BOX MOUNT BASE LAPP H-B 16 SGRL 21 ZW. BOX MOUNT BASE

10075000

10075000

H-B 16 SGRL 21 ZW. BOX MOUNT BASE

LAPP

5 Pcs.

H-B 16 SGRL 21 ZW. BOX MOUNT BASE EPIC® H-B 16 SGRL

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as a spacious box mount base, the Lapp 10075000 H-B 16 SGRL 21 ZW secures heavy-duty electrical connector assemblies on industrial plant machinery. Box mount bases provide robust physical protection and stable mounting points for wiring harnesses entering control enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The metal housing for rectangular connectors can be used, for example, in investment construction. The housing has 2 double levers and 2 cable entries.

  • Double lever version with 2 levers for increased safety
  • For easy introduction of two cables
  • Protection rating UL50E tested

Benefits

  • The housing standard. Wide choice for all applications

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Surface-mount base, low version
  • Dual levers
  • 2 cable entries

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
