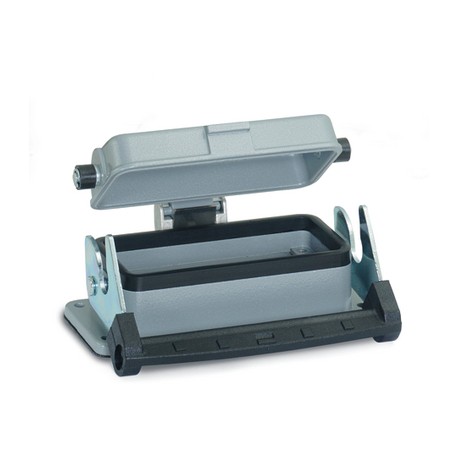

LAPP 10073900 10073900 EPIC H-B 16 AD-LB LAPP EPIC H-B 16 AD-LB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10073900 EPIC H-B 16 AD-LB LAPP EPIC H-B 16 AD-LB

10073900

10073900

EPIC H-B 16 AD-LB

LAPP

5 Pcs.

EPIC H-B 16 AD-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lapp 10073900 EPIC H-B 16 AD-LB industrial connector housing serves as a panel-mounted base receptacle for heavy-duty multi-pin electrical connections. Engineers rely on these surface bases to establish secure, modular connection points on machine chassis and control enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Included: flat gasket
  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust metal housing for investment construction contains a seal, a metal cap and a single lever.

  • Metal lid with sturdy hinge
  • Single Lever version for quick locking and simple unlocking with lifting aid
  • Protection rating UL50E tested

Benefits

  • The housing standard. Wide choice for all applications

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Included: flat gasket
  • Standard and high version
  • Metal cover
  • Single lever

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • UL50 Type 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
