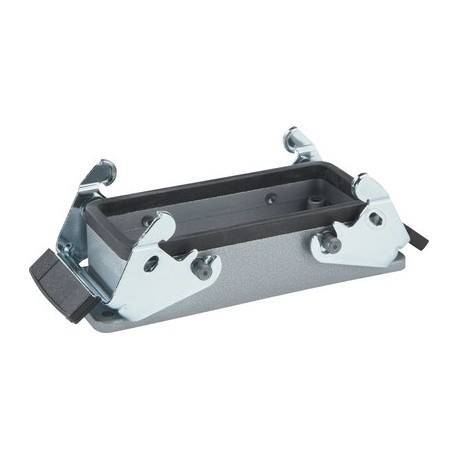

10072000 EPIC H-B 16 AG LAPP EPIC H-B 16 AG
10072000
10072000
EPIC H-B 16 AG
LAPP
5 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing a sturdy wall-mounted receptacle point, the Lapp 10072000 EPIC H-B 16 AG secures industrial connector inserts against mechanical stress and moisture in factory environments. Surface-mounted bases streamline cable management by offering a fixed termination point on panels or equipment housing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- H-A case: Wall base
- Included: flat gasket
- Housing: powder-coated aluminium alloy, grey
- Lever: zinc-plated steel
- Sealing: NBR
- NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The housing for rectangular connectors is suitable for use in the plastics industry and consists of built-in housing, 2 double levers and a seal.
- Double lever version with 2 levers for increased safety
- Protection rating UL50E tested
Benefits
- The housing standard. Wide choice for all applications
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- H-A case: Wall base
- Dual levers
- Included: flat gasket
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
