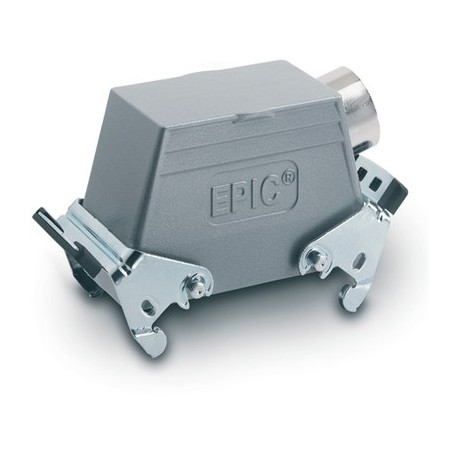

10045000 EPIC H-B 10 TSB 16 ZW LAPP EPIC H-B 10 TSB 16 ZW
10045000
10045000
EPIC H-B 10 TSB 16 ZW
LAPP
10 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed to encase and protect complex multi-pole electrical connectors, the Lapp 10045000 EPIC H-B 10 TSB 16 ZW unit safeguards internal wiring from environmental interference. Industrial connector hoods of this nature are widely utilized in factory automation networks, robotics, and industrial machinery where secure cabling is vital. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: powder-coated aluminium alloy, grey
- Lever: zinc-plated steel
- Sealing: NBR; NEMA 250, UL50E: 12, 4 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The universal low metal housing for rectangular connectors has 2 double levers, a side cable entry and a neck.
- Non-slip ridges for comfortable disconnecting
- Double lever version with 2 levers for increased safety
- Protection rating UL50E tested
Benefits
- The smallest housing with single and double lever. The right housing is available for every application
- For connection with counterpart with integrated cover
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Hood, low version
- Dual levers
- Side cable entry
- Versions with neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12, 4 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
