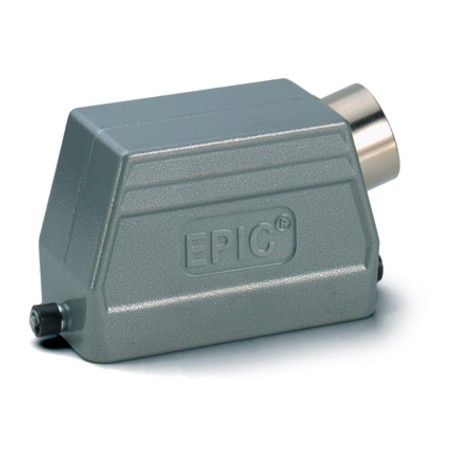

10042900 EPIC H-B 10 TS-RO 16 ZW LAPP EPIC H-B 10 TS-RO 16 ZW
10042900
10042900
EPIC H-B 10 TS-RO 16 ZW
LAPP
10 Pcs.
Connectors > Housing for rectangular connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This EPIC H-B 10 TS-RO 16 ZW industrial connector housing by Lapp provides robust mechanical protection for heavy-duty plug-and-socket connections in machinery and control cabinets. Housings of this type enclose cable interfaces to shield internal contacts against dust, moisture, and mechanical strain in demanding factory settings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Housing: powder-coated aluminium alloy, grey
- Lever: zinc-plated steel
- Sealing: NBR
- NEMA 250, UL50E: 12 (latched)
- Certified production control: VDE-REG. no.: B437
- UL-tested: UL File Number: E75770
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
More info
▲The low connector housing with a side cable entry is suitable for use in lighting and sound systems.
- Non-slip ridges for comfortable disconnecting
- Protection rating UL50E tested
Benefits
- The smallest housing with single and double lever. The right housing is available for every application
Application range
- Plant engineering
- Light & sound technology
- Plastics industry
Product features
- Hood, low version
- Reels for single lever
- Side cable entry
- Versions with neck
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000437
- ETIM 5.0 Class-Description: Housing for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000437
- ETIM 6.0 Class-Description: Housing for industrial connectors
Material
- Housing: powder-coated aluminium alloy, grey
Lever: zinc-plated steel
Sealing: NBR
Protection rating
- IP 65 (latched)
- NEMA 250, UL50E: 12 (latched)
VDE-tested
- Certified production control: VDE-REG. no.: B437
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
