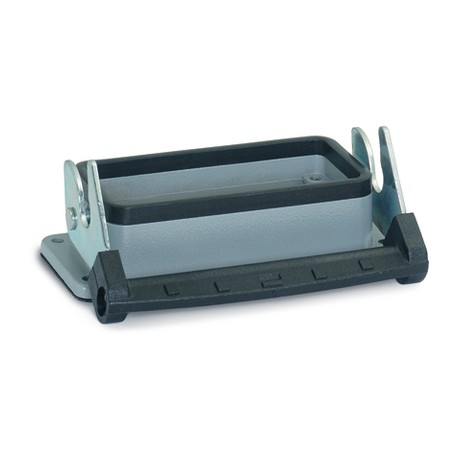

LAPP 10032900 10032900 EPIC H-B 10 AG-LB LAPP EPIC H-B 10 AG-LB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10032900 EPIC H-B 10 AG-LB LAPP EPIC H-B 10 AG-LB

10032900

10032900

EPIC H-B 10 AG-LB

LAPP

10 Pcs.

EPIC H-B 10 AG-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a surface wall base, the Lapp 10032900 EPIC H-B 10 AG-LB provides a rigid mounting platform for heavy-duty plug connector inserts on plant equipment. Panel and wall bases allow technicians to establish clean, fixed interface points for modular wiring harnesses across industrial installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • H-A case: Wall base
  • Included: flat gasket
  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust housing for rectangular connectors with a seal and a single lever can be used, for example, in the plastics industry.

  • Single Lever version for quick locking and simple unlocking with lifting aid
  • Protection rating UL50E tested

Benefits

  • The smallest housing with single and double lever. The right housing is available for every application

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • H-A case: Wall base
  • Single lever
  • Included: flat gasket

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
