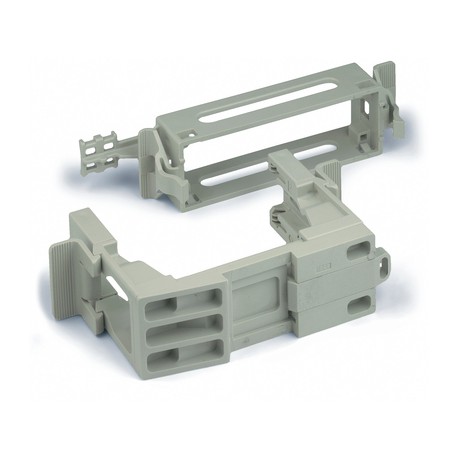

LAPP 10027510 10027510 H-B 10 Q+E TOP PART LAPP H-B 10 Q+E MOUNTING SYSTEM TOP PART View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10027510 H-B 10 Q+E TOP PART LAPP H-B 10 Q+E MOUNTING SYSTEM TOP PART

10027510

10027510

H-B 10 Q+E TOP PART

LAPP

10 Pcs.

H-B 10 Q+E MOUNTING SYSTEM TOP PART EPIC® QUICK & EASY Mounting system

Connectors > Module carrier frame for industrial connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A contact insert holder for industrial connectors, such as the Lapp 10027510 H-B 10 Q+E TOP PART, provides the upper mounting interface for rapid connector assembly. This component ensures that internal contact modules remain firmly locked inside demanding electrical distribution frameworks. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC002312
  • ETIM 5.0 Class-Description: Contact insert holder for industrial connectors
  • ETIM 6.0 Class-ID: EC002312
  • ETIM 6.0 Class-Description: Contact insert holder for industrial connectors

More info

▲

The installation system for control cabinets is available as a set or as single components (upper part for the cable connector, lower part for installation to DIN rail).

Mounting system for control cabinets

Application range

  • Control cabinet manufacturing

Product features

  • For mounting inserts on top-hat rails according to DIN EN 50022
  • Available as a complete set or as single parts (top part for use as a cable connector, bottom part for mounting on a top-hat rail)
  • QUICK & EASY top parts are available in housing types H-B 6, H-B 10, H-B 16, H-B 24. The suitable size (number of contacts) of the different insert types are listed at the connector housings (H-B 6 ..H-B 24)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002312
  • ETIM 5.0 Class-Description: Contact insert holder for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002312
  • ETIM 6.0 Class-Description: Contact insert holder for industrial connectors

Flammability

  • UL94 V-0

Cycle of mechanical operation

  • 50
