10027200 H-B 16 Q+E LAPP H-B 16 Q+E MOUNTING SYSTEM
10027200
10027200
H-B 16 Q+E
LAPP
1 Pcs.
Connectors > Module carrier frame for industrial connectors
EPIC rectangular
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A contact insert holder for industrial connectors, such as the Lapp 10027200 H-B 16 Q+E, maintains the structural integrity of multi-pin electrical terminations in control cabinets. These support frames simplify installation and maintenance routines by allowing rapid insertion and removal of connector modules. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ETIM 5.0 Class-ID: EC002312
- ETIM 5.0 Class-Description: Contact insert holder for industrial connectors
- ETIM 6.0 Class-ID: EC002312
- ETIM 6.0 Class-Description: Contact insert holder for industrial connectors
More info

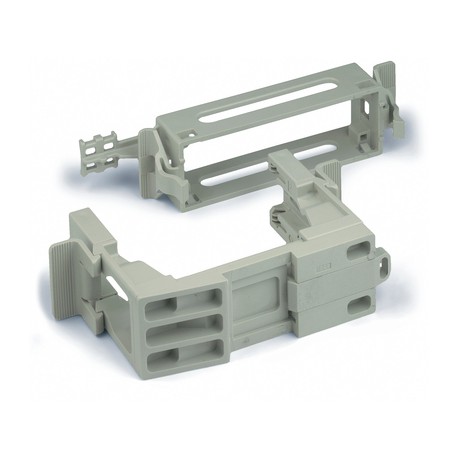

▲The installation system for control cabinets is available as a set or as single components (upper part for the cable connector, lower part for installation to DIN rail).
Mounting system for control cabinets
Application range
- Control cabinet manufacturing
Product features
- For mounting inserts on top-hat rails according to DIN EN 50022
- Available as a complete set or as single parts (top part for use as a cable connector, bottom part for mounting on a top-hat rail)
- QUICK & EASY top parts are available in housing types H-B 6, H-B 10, H-B 16, H-B 24. The suitable size (number of contacts) of the different insert types are listed at the connector housings (H-B 6 ..H-B 24)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002312
- ETIM 5.0 Class-Description: Contact insert holder for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002312
- ETIM 6.0 Class-Description: Contact insert holder for industrial connectors
Flammability
- UL94 V-0
Cycle of mechanical operation
- 50
