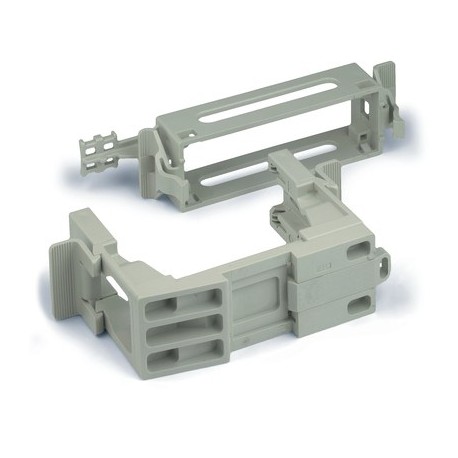

LAPP 10027100 10027100 H-B 10 Q+E LAPP H-B 10 Q+E MOUNTING SYSTEM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10027100 H-B 10 Q+E LAPP H-B 10 Q+E MOUNTING SYSTEM

10027100

10027100

H-B 10 Q+E

LAPP

1 Pcs.

H-B 10 Q+E MOUNTING SYSTEM EPIC® QUICK & EASY Mounting system

Connectors > Module carrier frame for industrial connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A contact insert holder for industrial connectors, specifically the Lapp 10027100 H-B 10 Q+E, secures electrical contact blocks within rugged protective hoods and housings. These mounting systems streamline the assembly of multi-pole connections in manufacturing machinery and control panels. Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ETIM 5.0 Class-ID: EC002312
  • ETIM 5.0 Class-Description: Contact insert holder for industrial connectors
  • ETIM 6.0 Class-ID: EC002312
  • ETIM 6.0 Class-Description: Contact insert holder for industrial connectors

More info

▲

The installation system for control cabinets is available as a set or as single components (upper part for the cable connector, lower part for installation to DIN rail).

Mounting system for control cabinets

Application range

  • Control cabinet manufacturing

Product features

  • For mounting inserts on top-hat rails according to DIN EN 50022
  • Available as a complete set or as single parts (top part for use as a cable connector, bottom part for mounting on a top-hat rail)
  • QUICK & EASY top parts are available in housing types H-B 6, H-B 10, H-B 16, H-B 24. The suitable size (number of contacts) of the different insert types are listed at the connector housings (H-B 6 ..H-B 24)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002312
  • ETIM 5.0 Class-Description: Contact insert holder for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002312
  • ETIM 6.0 Class-Description: Contact insert holder for industrial connectors

Flammability

  • UL94 V-0

Cycle of mechanical operation

  • 50
