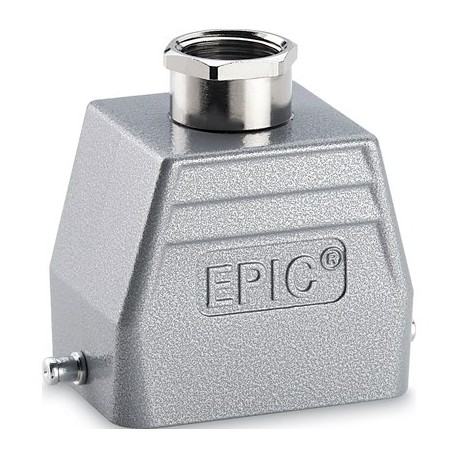

LAPP 10021000 10021000 EPIC H-B 6 TG 16 ZW LAPP EPIC H-B 6 TG 16 ZW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10021000 EPIC H-B 6 TG 16 ZW LAPP EPIC H-B 6 TG 16 ZW

10021000

10021000

EPIC H-B 6 TG 16 ZW

LAPP

10 Pcs.

EPIC H-B 6 TG 16 ZW EPIC® H-B 6 TG

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured with added interior depth, the Lapp EPIC H-B 6 TG 16 ZW high connector hood ensures sufficient clearance for bulky wiring looms in control cabinets. Hoods protect internal connector inserts against dust, moisture, and mechanical stress in continuous manufacturing environments. Specific pricing, availability, and delivery details for part number 10021000 are provided upon submission of an RFQ.

  • High version: More interior space for wiring
  • Housing: powder-coated aluminium alloy, grey Bolts: steel, coated
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The universal metal housing is the smallest body in the H-B series and is suitable for inserts with outstanding electrical properties.

  • Non-slip ridges for comfortable disconnecting
  • High version: More interior space for wiring
  • Protection rating UL50E tested

Benefits

  • The smallest housing out of the H-B series. For inserts with high electrical properties

Application range

  • Plant engineering
  • Control engineering
  • Plastics industry

Product features

  • Hood, low version
  • Bolts for single lever
  • Straight cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Bolts: steel, coated

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
