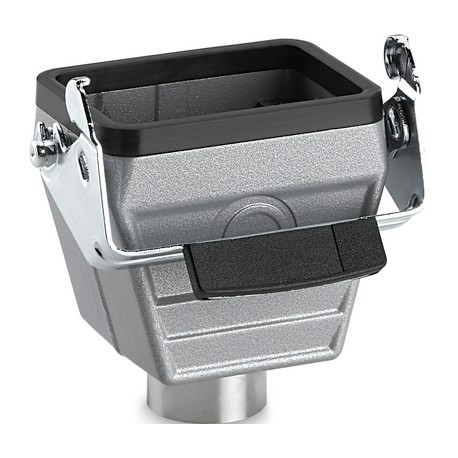

LAPP 10014000 10014000 EPIC H-B 6 TBF 13.5 ZW LAPP EPIC H-B 6 TBF 13.5 ZW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10014000 EPIC H-B 6 TBF 13.5 ZW LAPP EPIC H-B 6 TBF 13.5 ZW

10014000

10014000

EPIC H-B 6 TBF 13.5 ZW

LAPP

10 Pcs.

EPIC H-B 6 TBF 13.5 ZW EPIC® H-B 6 TBF-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for demanding wiring applications, the Lapp 10014000 EPIC H-B 6 TBF 13.5 ZW is a protective housing designed to shield modular electrical insert blocks. Enclosures like this are deployed across industrial machinery to maintain reliable contact integrity and guard connection points against physical damage and contaminants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The universal metal housing with a direct cable entry is suitable for use in investment construction and the plastics industry.

Protection rating UL50E tested

Benefits

  • The smallest housing out of the H-B series. For inserts with high electrical properties

Application range

  • Plant engineering
  • Control engineering
  • Plastics industry

Product features

  • Cable coupler hood, low version
  • Single lever
  • Straight cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
