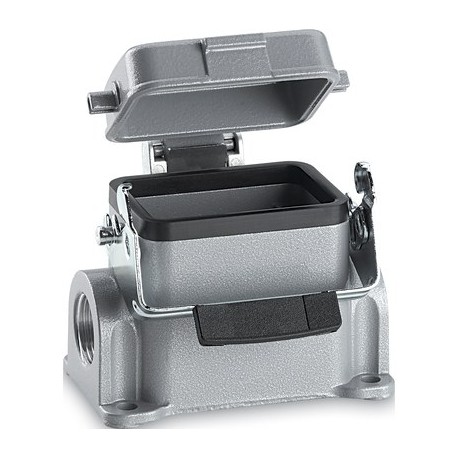

LAPP 10009000 10009000 H-B 6 SDRL 16 ZW. BOX MOUNT BASE LAPP H-B 6 SDRL 16 ZW. BOX MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10009000 H-B 6 SDRL 16 ZW. BOX MOUNT BASE LAPP H-B 6 SDRL 16 ZW. BOX MOUNT BASE

10009000

10009000

H-B 6 SDRL 16 ZW. BOX MOUNT BASE

LAPP

10 Pcs.

H-B 6 SDRL 16 ZW. BOX MOUNT BASE EPIC® H-B 6 SDRL-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing a reliable structural base for modular cabling setups, the Lapp 10009000 H-B 6 SDRL 16 ZW. BOX MOUNT BASE housing for industrial connectors protects internal terminations within electrical distribution systems. Industrial connector bases ensure sturdy fixture mounting on machine frames and control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Housing: powder-coated aluminium alloy, grey
  • Lever: zinc-plated steel
  • Sealing: NBR
  • NEMA 250, UL50E: 12, 4 (latched)
  • Certified production control: VDE-REG. no.: B437
  • UL-tested: UL File Number: E75770
  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors
  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

More info

▲

The robust universal base housing has 2 cable entries and 1 single lever and can be used, for example, in investment construction or control systems.

  • Metal lid with sturdy hinge
  • Metal lid with sturdy hinge
  • Protection rating UL50E tested

Benefits

  • The smallest housing out of the H-B series. For inserts with high electrical properties

Application range

  • Plant engineering
  • Control engineering
  • Plastics industry

Product features

  • Surface-mount base, low version
  • Single lever
  • 2 cable entries
  • Metal cover

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
